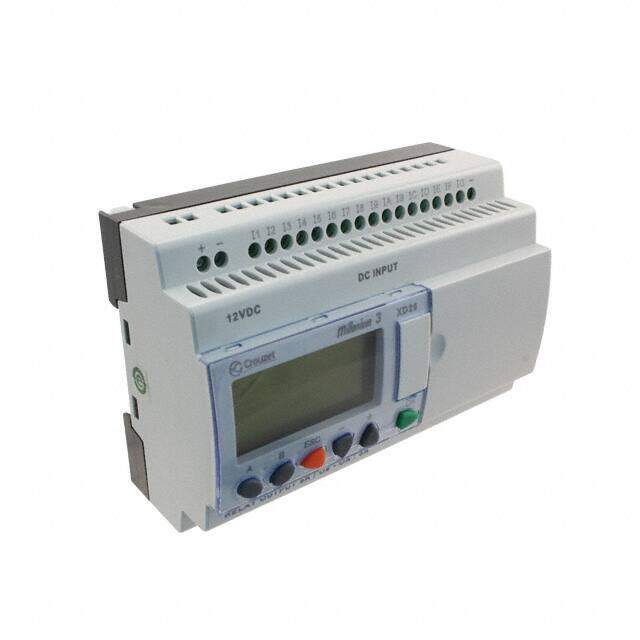

88970165
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description
CONTROL LOGIC 16 IN 10 OUT 12V
PDF
/
Buying Options
Total Price: USD $359.31
Unit Price: USD $359.3128
≥1 USD $359.3128
Inventory: 24
Minimum: 1
-
+
Technical Details
Technical
Operating Temperature -20°C~55°C
Published 2005
Series Millenium 3, XD26
Feature Battery Backup (Lithium)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Voltage - Supply 12VDC
Ingress Protection IP40
Depth 68mm
Number of Outputs 10
Approval Agency CE, CSA, GL, UL
Operating Supply Voltage 12V
Memory Size 368Bits/200Words
Mechanical Life 1e+07 cycles
Response Time 5 ms
Number of Inputs 16
Display Type LCD - Black Characters, Green Backlight
Number of Characters Per Row 18, 18, 18, 18
Number of Inputs and Type 16 - Digital (10), Analog/Digital (6)
Number of Outputs and Type 10 - Relay
Expandable Expandable
Software M3 Soft
Dimensions
Length 107.6mm
Width 124.6mm
Compliance
RoHS Status RoHS Compliant
Ratings IP20, IP40
Physical
Package / Case Module
Mounting Type Chassis Mount, DIN Rail
Mount Chassis Mount, DIN Rail, Panel
Supply Chain
Factory Lead Time 3 Weeks
