88970151
RoHS
RoHS compliant
RoHS compliantPackage /
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description

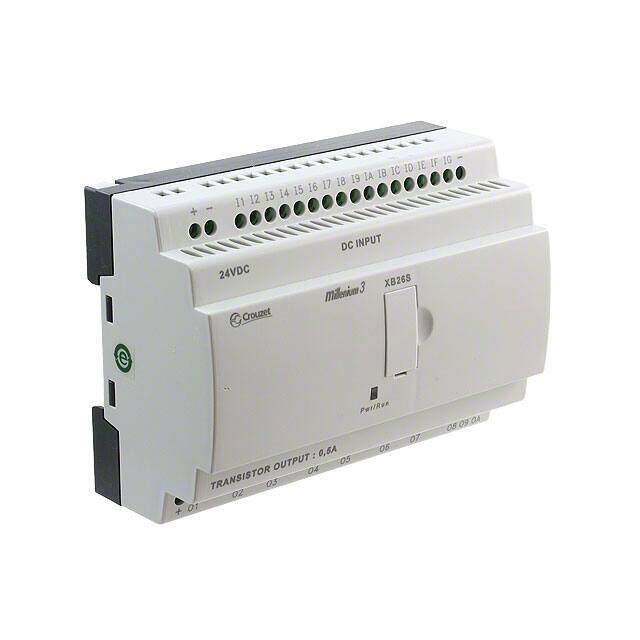

Controllers M3 XB26 24VDC EXPAND RLY OUT
PDF
/
Inventory: 7282
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 124.6mm
Length 107.6mm
Technical
Software M3 Soft
Expandable Expandable
Number of Outputs and Type 10 - Relay
Number of Inputs and Type 16 - Digital (10), Analog/Digital (6)
Display Type No Display
Number of Inputs 16
Response Time 5 ms
Mechanical Life 1e+07 cycles
Memory Size 368Bits/200Words
Approval Agency CE, CSA, GL, UL
Number of Outputs 10
Depth 67.5mm
Ingress Protection IP40
Voltage - Supply 24VDC
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Battery Backup (Lithium)
Series Millenium 3, XB26
Published 2008
Operating Temperature -20°C~55°C
Physical
Mounting Type Chassis Mount, DIN Rail
Mount DIN Rail, Panel
Supply Chain
Factory Lead Time 3 Weeks
