88970143
RoHS
/
Package 100
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description

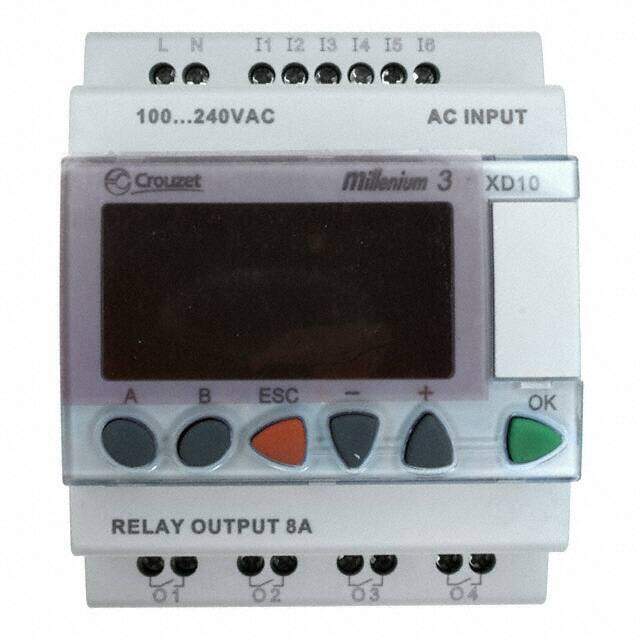

CONTROL LOG 6 IN 4 OUT 100-240V
PDF
/
Inventory: 2341
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount DIN Rail, Panel
Mounting Type Chassis Mount, DIN Rail
Package / Case 100
Technical
Operating Temperature -20°C~55°C
Published 2005
Series Millenium 3, XD10
Feature Battery Backup (Lithium)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Voltage - Supply 100V~240VAC
Ingress Protection IP40
Depth 70mm
Number of Outputs 4
Approval Agency CE, CSA, GL, UL
Memory Size 368Bits/200Words
Number of Inputs 6
Display Type LCD - Black Characters, Green Backlight
Number of Characters Per Row 18, 18, 18, 18
Number of Inputs and Type 6 - Digital
Number of Outputs and Type 4 - Relay
Expandable Expandable
Software M3 Soft
Dimensions
Length 107.6mm
Width 71.2mm
Compliance
RoHS Status RoHS Compliant
Ratings IP20
