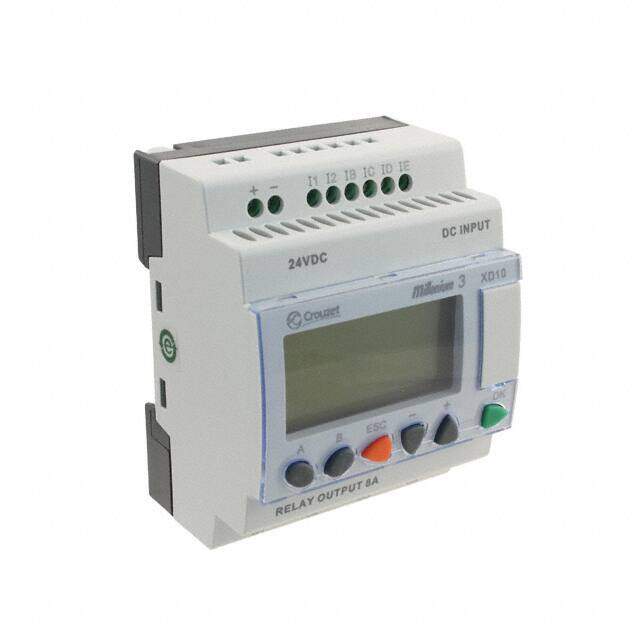

88970141
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description
CONTROL LOGIC 6 IN 4 OUT 24V
PDF
/
Buying Options
Total Price: USD $444.83
Unit Price: USD $444.834128
≥1 USD $444.834128
≥10 USD $419.654839
≥100 USD $395.900797
≥500 USD $373.491316
≥1000 USD $352.350298
Inventory: 975
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20, IP40
RoHS Status RoHS Compliant
Dimensions
Width 71.2mm
Length 107.6mm
Height 90mm
Technical
Software M3 Soft
Expandable Expandable
Number of Outputs and Type 4 - Relay
Number of Inputs and Type 6 - Digital (2), Analog/Digital (4)
Number of Characters Per Row 18, 18, 18, 18
Display Type LCD - Black Characters, Green Backlight
Number of Inputs 6
Response Time 5 ms
Mechanical Life 1e+07 cycles
Output Current 8A
Memory Size 368Bits/200Words
Operating Supply Voltage 24V
Approval Agency CE, CSA, GL, UL
Number of Outputs 4
Depth 68mm
Ingress Protection IP40
Voltage - Supply 24VDC
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Battery Backup (Lithium)
Series Millenium 3, XD10
Published 2005
Operating Temperature -20°C~55°C
Physical
Package / Case Module
Mounting Type Chassis Mount, DIN Rail
Mount Chassis Mount, DIN Rail, Panel
Supply Chain
Factory Lead Time 3 Weeks
