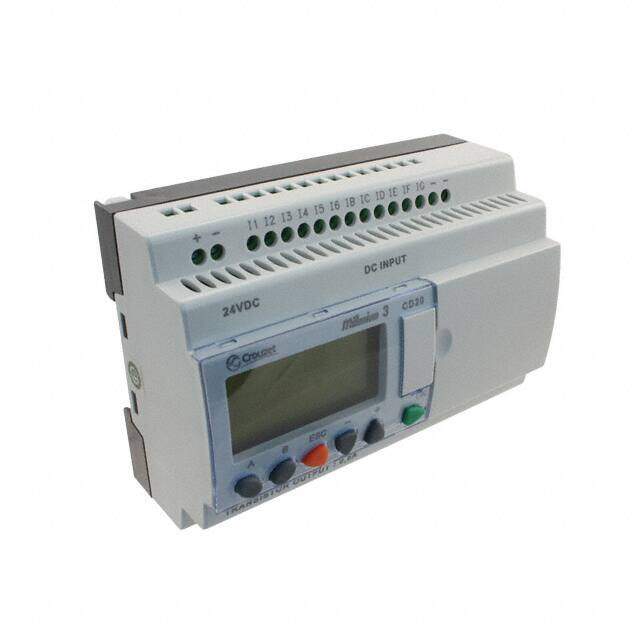

88970052
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description
CONTROL LOGIC 12 IN 8 OUT 24V
PDF
/
Buying Options
Total Price: USD $278.89
Unit Price: USD $278.8896
≥1 USD $278.8896
Inventory: 33
Minimum: 1
-
+
Technical Details
Technical
Operating Temperature -20°C~55°C
Published 2006
Series Millenium 3, CD20
Feature Battery Backup (Lithium)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Voltage - Supply 24VDC
Ingress Protection IP40
Depth 68mm
Number of Outputs 8
Approval Agency CE, CSA, GL, UL
Output Type PWM
Operating Supply Voltage 24V
Memory Size 368Bits/200Words
Output Current 500mA
Mechanical Life 1e+07 cycles
Response Time 5 ms
Number of Inputs 12
Display Type LCD - Black Characters, Green Backlight
Number of Characters Per Row 18, 18, 18, 18
Number of Inputs and Type 12 - Digital (6), Analog/Digital (6)
Number of Outputs and Type 8 - PWM (4), Solid State (4)
Expandable Non-Expandable
Software M3 Soft
Dimensions
Height 90mm
Length 59.5mm
Width 124.6mm
Compliance
RoHS Status RoHS Compliant
Ratings IP20, IP40
Physical
Package / Case Module
Mounting Type Chassis Mount, DIN Rail
Mount Chassis Mount, DIN Rail, Panel
Supply Chain
Factory Lead Time 3 Weeks
