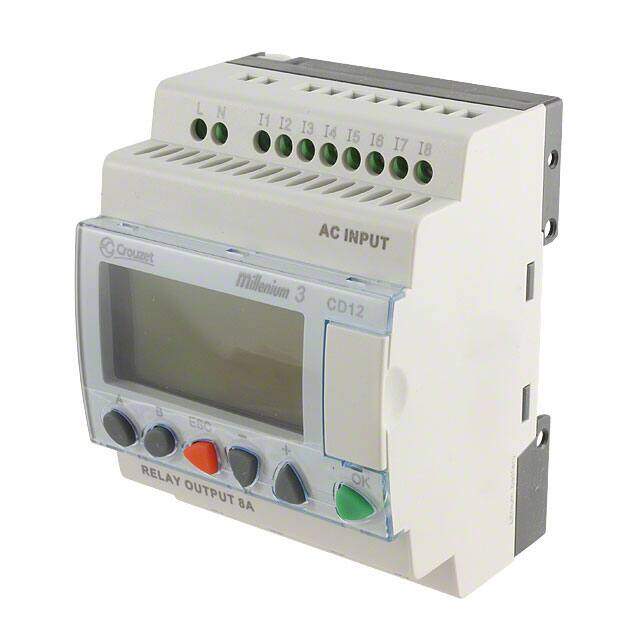

88970043
RoHS
/
Package 100
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description
CONTROL LOG 8 IN 4 OUT 100-240V
PDF
/
Inventory: 3688
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP20, IP40
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 72mm
Length 107.6mm
Technical
Software M3 Soft
Expandable Non-Expandable
Number of Outputs and Type 4 - Relay
Number of Inputs and Type 8 - Digital
Number of Characters Per Row 18, 18, 18, 18
Display Type LCD - Black Characters, Green Backlight
Max Input Voltage 240V
Number of Inputs 8
Min Input Voltage 100V
Response Time 5 ms
Mechanical Life 1e+07 cycles
Memory Size 368Bits/200Words
Approval Agency CE, CSA, GL, UL
Number of Outputs 4
Depth 70mm
Ingress Protection IP40
Voltage - Supply 100V~240VAC
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Battery Backup (Lithium)
Series Millenium 3, CD12
Published 2004
Operating Temperature -20°C~55°C
Physical
Package / Case 100
Mounting Type Chassis Mount, DIN Rail
Mount DIN Rail, Panel
