88970042
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Industrial Automation and Controls / Controllers - Programmable Logic (PLC)
Description

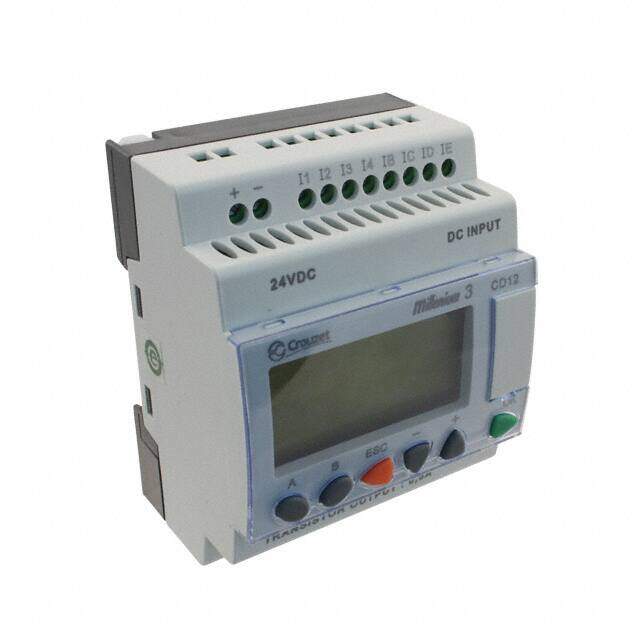

CONTROL LOGIC 8 IN 4 OUT 24V
PDF
/
Buying Options
Total Price: USD $180.31
Unit Price: USD $180.312
≥1 USD $180.312
Inventory: 55
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20, IP40
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 71.2mm
Length 107.6mm
Height 90mm
Technical
Software M3 Soft
Expandable Non-Expandable
Number of Outputs and Type 4 - PWM (1), Solid State (3)
Number of Inputs and Type 8 - Digital (4), Analog/Digital (4)
Number of Characters Per Row 18, 18, 18, 18
Display Type LCD - Black Characters, Green Backlight
Number of Inputs 8
Response Time 5 ms
Mechanical Life 1e+07 cycles
Output Current 500mA
Memory Size 368Bits/200Words
Operating Supply Voltage 24V
Output Type PWM
Approval Agency CE, CSA, GL, UL
Number of Outputs 4
Depth 68mm
Ingress Protection IP40
Voltage - Supply 24VDC
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Battery Backup (Lithium)
Series Millenium 3, CD12
Published 2006
Operating Temperature -20°C~55°C
Physical
Package / Case Module
Mounting Type Chassis Mount, DIN Rail
Mount Chassis Mount, DIN Rail, Panel
Supply Chain
Factory Lead Time 3 Weeks
