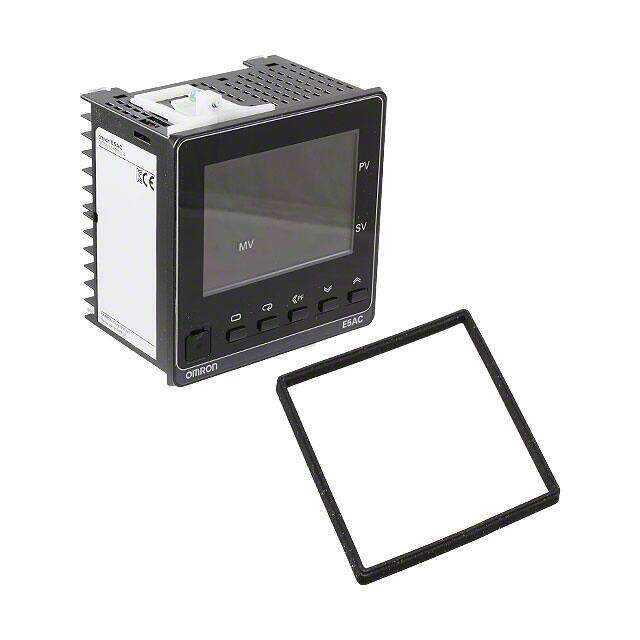

E5AC-PR2ASM-804
RoHS
/
Package 100
Category Industrial Automation and Controls / Controllers - Process, Temperature
Description
CONTROL TEMP/PROCESS 100-240V
PDF
/
Buying Options
Total Price: USD $432.12
Unit Price: USD $432.1152
≥1 USD $432.1152
≥10 USD $417.71136
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP66
RoHS Status Non-RoHS Compliant
Dimensions
Display Characters - Height 0.984 25.00mm 0.590 15.00mm
Technical
Communications RS-485 (CompoWay/F, Modbus)
Control Method On/Off, Proportional (PID)
Number of Characters Per Row 4, 4
Input Range -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC
Display Type LCD - Dual Color Characters, Backlight
Number of Inputs 1
Panel Cutout Dimensions Square - 92.00mm x 92.00mm
Output Type Relay (4)
Number of Outputs 4
Termination Style Screw Terminal
Ingress Protection IP66 - Dust Tight, Water Resistant
Voltage - Supply 100V~240VAC
Min Operating Temperature -10°C
Max Operating Temperature 55°C
Type Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W)
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Event Input
Series E5AC
Published 2012
Operating Temperature -10°C~55°C
Physical
Weight 0.551lb 249.93g
Package / Case 100
Mounting Type Panel Mount
Mount Brackets, Panel
