2863931
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Industrial Automation and Controls / Controllers - PLC Modules
Description

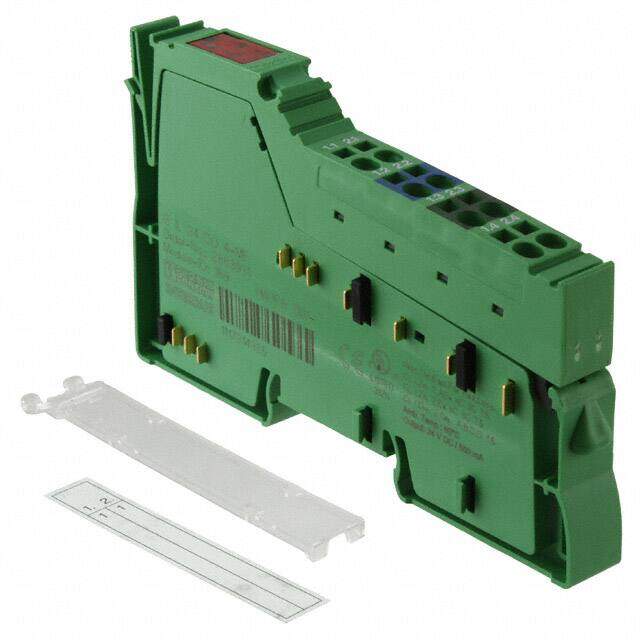

DIN Rail Terminal Blocks IB IL 24 DO 4-ME
PDF
/
Buying Options
Total Price: USD $71.44
Unit Price: USD $71.442468
≥1 USD $71.442468
≥10 USD $67.398553
≥100 USD $63.583545
≥500 USD $59.984476
≥1000 USD $56.589131
Inventory: 4950
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 12.2mm
Length 71.5mm
Height 119.8mm
Technical
Number of Outputs and Type 4 - Solid State
Min Supply Voltage (DC) 19.2V
Max Supply Voltage (DC) 30V
Max Output Current 500mA
Approval Agency cUL, cULus, UL
Termination Style Spring Terminal
Current Rating 500mA
Ingress Protection IP20
Voltage - Supply 24VDC
Voltage - Rated 24V
Min Operating Temperature -25°C
Max Operating Temperature 55°C
Number of Positions 4
Type Output Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Inline
Published 2011
Operating Temperature -25°C~55°C
Physical
Weight 0.13lb 58.97g
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
