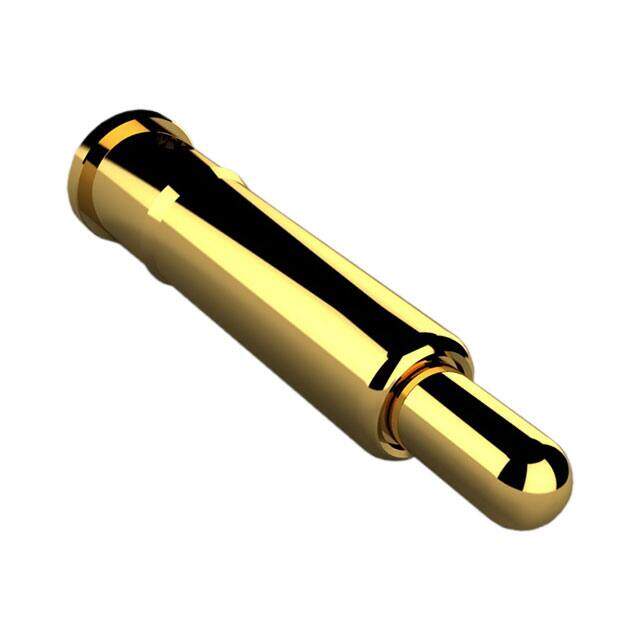

90203-AS

Preci-Dip
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED SMD GOLD
PDF
/
Inventory: 2182
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Stack Height (Max) 0.323 8.20mm
Contact Finish Thickness 10.0μin 0.25μm

Technical

Operating Force - Mid Compression 107.07gf
Minimum Working Height 0.252 6.40mm
Pad Layout Dimension Circular - 0.071 (1.80mm)
Operating Force - Initial 50.99gf
Plunger Size 0.038 0.96mm Dia
Mating Cycles 40000
Plating Gold
Contact Finish Gold
Current Rating (Amps) 2A
Contact Type Sleeve & Plunger
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2014
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Material Brass
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass Alloy

Supply Chain

Factory Lead Time 10 Weeks
