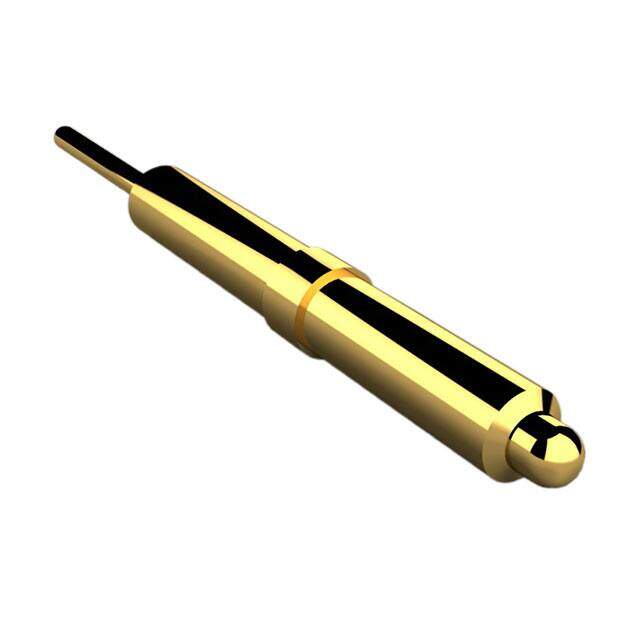

90056-AS image
Favorite
90056-AS image
Favorite

90056-AS

Preci-Dip
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED T/H GOLD
PDF
/
Inventory: 9593
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Stack Height (Max) 0.472 12.00mm
Contact Finish Thickness 30.0μin 0.76μm

Technical

Operating Force - Mid Compression 71.38gf
Minimum Working Height 0.441 11.20mm
Pad Layout Dimension Circular - 0.059 (1.50mm) (TH)
Operating Force - Initial 36.71gf
Plunger Size 0.037 0.95mm Dia
Mating Cycles 40000
Contact Finish Gold
Current Rating (Amps) 3A
Contact Type Sleeve & Plunger
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Material Brass
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass Alloy

Supply Chain

Factory Lead Time 10 Weeks
