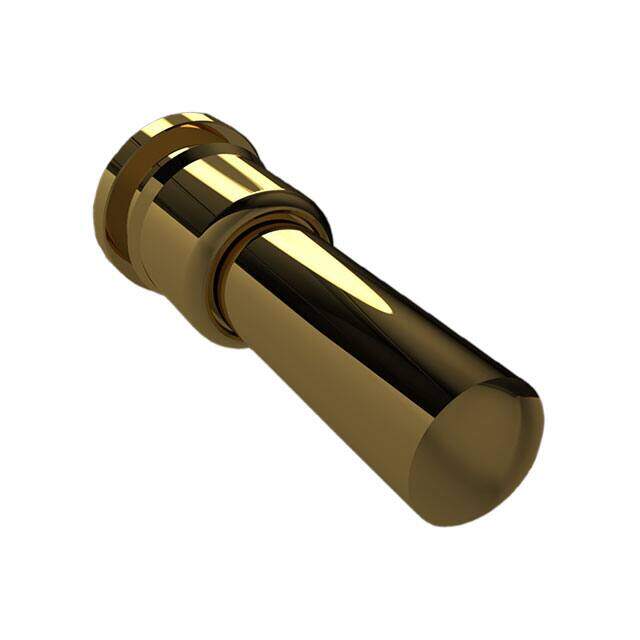

90027-AS image
Favorite
90027-AS image
Favorite

90027-AS

Preci-Dip
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Connectors, Interconnects / Contacts, Spring Loaded and Pressure
Description CONTACT SPRING LOADED SMD GOLD
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
≥10 USD $0.48136
≥100 USD $0.461472
≥500 USD $0.451616
≥1000 USD $0.431992
≥3000 USD $0.392691
Inventory: 20114
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Stack Height (Max) 0.256 6.50mm
Contact Finish Thickness 20.0μin 0.51μm

Technical

Operating Force - Mid Compression 61.18gf
Minimum Working Height 0.201 5.10mm
Pad Layout Dimension Circular - 0.072 (1.83mm)
Operating Force - Initial 25.49gf
Plunger Size 0.042 1.07mm Dia
Mating Cycles 40000
Plating Gold
Contact Finish Gold
Current Rating (Amps) 3A
Contact Type Sleeve & Plunger
Connector Type SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Material Brass
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Brass Alloy

Supply Chain

Factory Lead Time 10 Weeks
