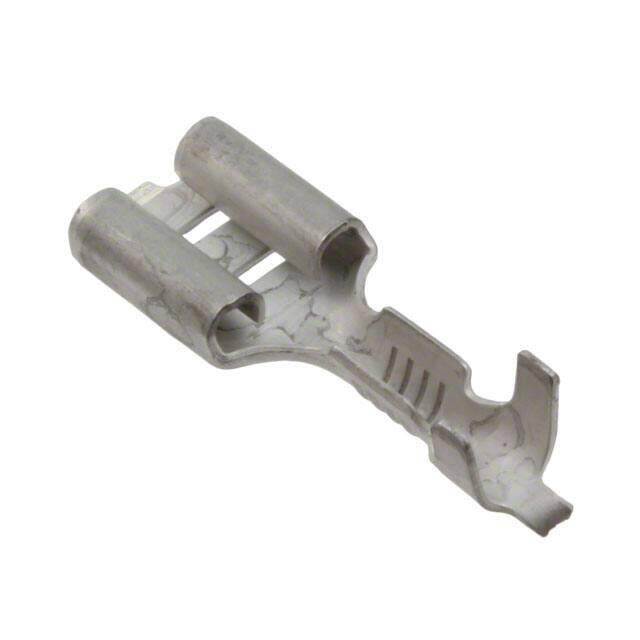

66563-8 image
Favorite
RoHS
RoHS RoHS compliant
Package 062
Category Connectors, Interconnects / Contacts - Multi Purpose
Description CONN SKT .062 20-24AWG AU CRIMP
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.0384
≥1 USD $1.0384
≥10 USD $0.96976
≥100 USD $0.933856
≥500 USD $0.92488
≥1000 USD $0.834592
≥3000 USD $0.807558
Inventory: 1440
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Not Applicable
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Plating Thickness 760 nm
Contact Finish Thickness 30.0μin 0.76μm
Length 20.96mm
Height 3.94mm

Technical

Cable Entry-Min 0.06 inch
Assembly Item Name CONTACT
Pin or Socket Socket
Insulation Diameter 3.05 mm
Test Current 13A
Contact Termination Crimp
Circuit Application Signal
Contact Current Rating 13A
Wire/Cable Gauge 20 AWG
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 20 AWG
Wire/Cable Type Discrete
Max Current Rating 13A
ELV Compliant
Wire Gauge 20-24 AWG
Operating Temperature (Min) -55°C
Contact Gender Female
Operating Temperature (Max) 90°C
Contact Finish Gold
Depth 4.06mm
Shielding Unshielded
Orientation Straight
Pitch 2.54mm
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.90.40.00
Number of Positions 24
Type Stamped
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Multimate III+
Published 1998
Packaging Cut Tape (CT)

Physical

Underplate Material Nickel
Package / Case 062
Mount Cable
Contact Plating Gold, Tin
Contact Material Brass

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 4 Weeks
