2297154
RoHS
RoHS compliant
RoHS compliantPackage SSR with Integrated Heat Sink
Category Relays / Contactors (Solid State)
Description

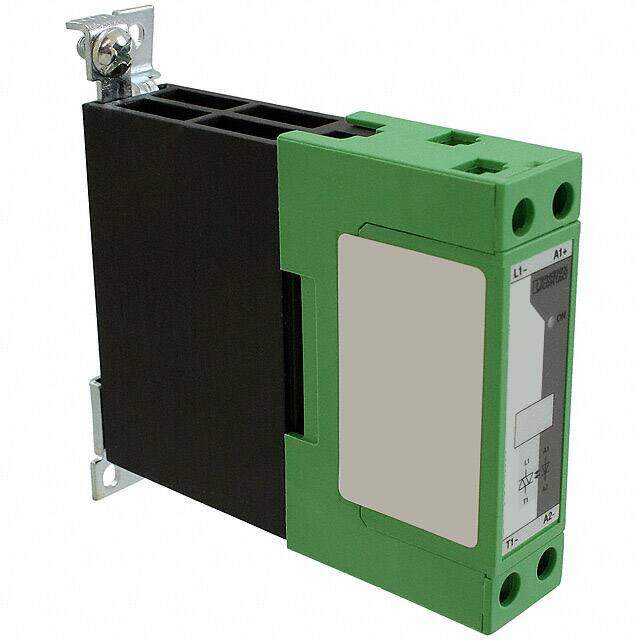

Solid State Relays - Industrial Mount ELR 1-24DC/600AC/30 SINGLE PHASE 24Vdc
PDF
/
Inventory: 1471
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Mounting Type Chassis Mount, DIN Rail
Package / Case SSR with Integrated Heat Sink
Weight 255.145708g
Technical
Packaging Bulk
Published 2010
Series ELR 1
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 70°C
Min Operating Temperature -30°C
Depth 103mm
Termination Style Screw Terminal
Output Type AC, Zero Cross
Circuit SPST-NO (1 Form A)
Max Voltage Rating (AC) 660V
Max Current Rating 30A
Voltage - Input 4V~32VDC
Throw Configuration SPST
Relay Type Contactor
Coil Current 12mA
Voltage - Load 42V~660V
Coil Voltage (DC) 32V
Load Current 30A
Dimensions
Length 103mm
Width 22.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
