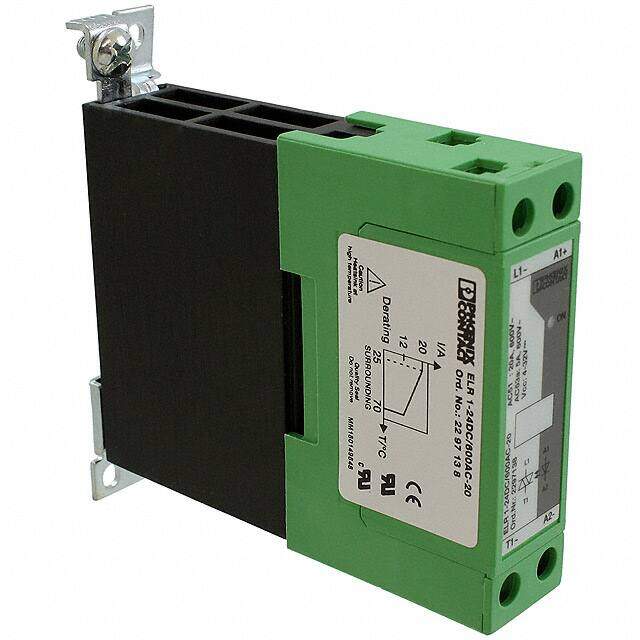

2297138 image
Favorite
2297138 image
Favorite
RoHS
RoHS RoHS compliant
Package SSR with Integrated Heat Sink
Category Relays / Contactors (Solid State)
Description Solid State Relays - Industrial Mount ELR 1-24DC/600AC/20 SINGLE PHASE 24Vdc
PDF
/
Inventory: 1564
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 22.5mm
Length 103mm

Technical

Contact Voltage Rating (DC) 24V
Input Current 12mA
Coil Voltage (DC) 32V
Voltage - Load 42V~660V
Coil Current 12mA
Relay Type Relay
Throw Configuration SPST
Voltage - Input 4V~32VDC
Max Current Rating 20A
Max Voltage Rating (AC) 660V
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Termination Style Screw Terminal
Depth 103mm
Min Operating Temperature -30°C
Max Operating Temperature 70°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series ELR 1
Published 2014
Packaging Bulk

Physical

Weight 259.999997g
Package / Case SSR with Integrated Heat Sink
Mounting Type Chassis Mount, DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 5 Weeks
