2297057
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Relays / Contactors (Solid State)
Description

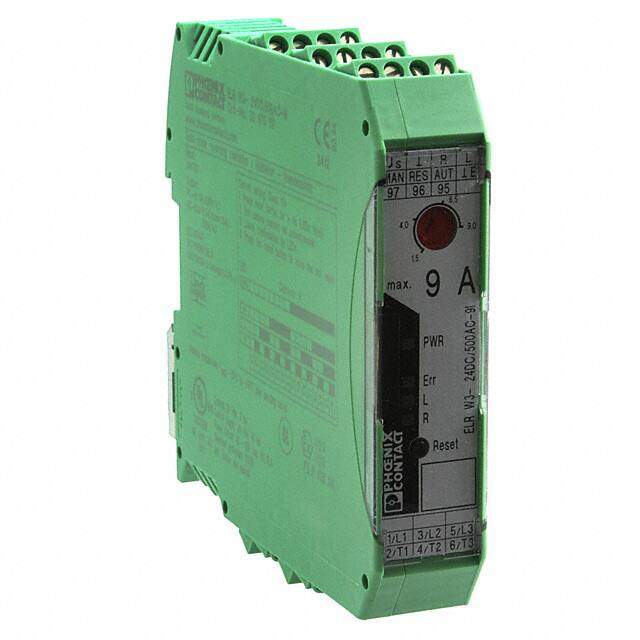

Solid State Relays - Industrial Mount ELRW3-24DC/500AC-9I 24VDC, 9A CONTACTOR
PDF
/
Buying Options
Total Price: USD $175.8
Unit Price: USD $175.7976
≥1 USD $175.7976
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20
RoHS Status RoHS Compliant
Dimensions
Width 99mm
Length 99mm
Height 22.5mm
Technical
Load Current 9A
Input Current 40mA
Coil Voltage (DC) 24V
Voltage - Load 48V~550V
Coil Current 35mA
Coil Resistance 685.7Ohm
Relay Type Contactor
Turn On Delay Time 35 ms
Throw Configuration 3PST
Voltage - Input 24VDC
Max Current Rating 9A
Max Voltage Rating (AC) 550V
Circuit 3PST-NO (3 Form A)
Output Type AC
Approval Agency CB, CCC, UL
Termination Style Screw Terminal
Depth 114.5mm
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ELR W3
Published 2008
Packaging Bulk
Physical
Weight 275.199991g
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
