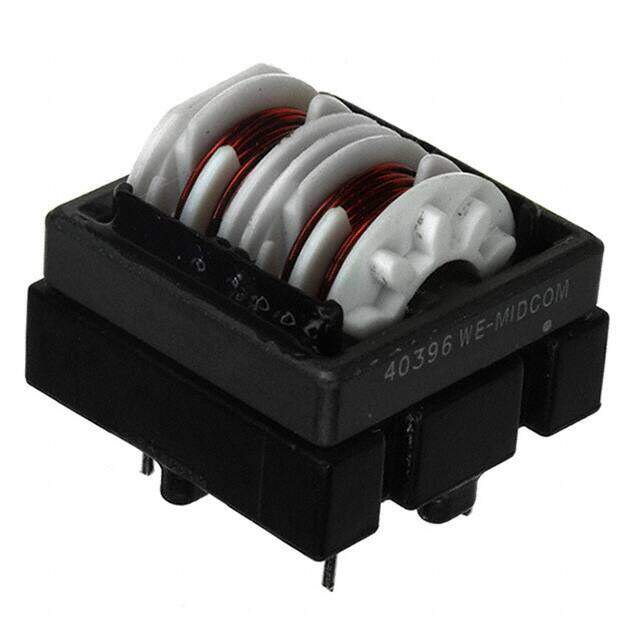

7448640396

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description CMC 1.8MH 1.5A 2LN TH
PDF
/
Buying Options
Total Price: USD $3.12
Unit Price: USD $3.11945
≥1 USD $3.11945
≥240 USD $1.244629
≥480 USD $1.203929
≥960 USD $1.182923
Inventory: 1270
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height (Max) 0.701 17.80mm
Width 21.209mm
Length 21.209mm
Height 17.8054mm

Technical

Inductance @ Frequency 1.8mH @ 10kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 150mOhm Typ
Number of Lines 2
Filter Type Power Line
Max DC Current 1.5A
Current 1.5A
Inductance 1.8 mH
Lead Pitch 13mm
Voltage - Rated AC 250V
Current Rating 1.5A
Depth 21.2mm
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 150mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 50%
Size / Dimension 0.835Lx0.835W 21.20mmx21.20mm
Series WE-FC
Packaging Tube
Operating Temperature -40°C~125°C

Physical

Core Material Ferrite
Number of Pins 4
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Radial, Through Hole

Supply Chain

Factory Lead Time 18 Weeks
