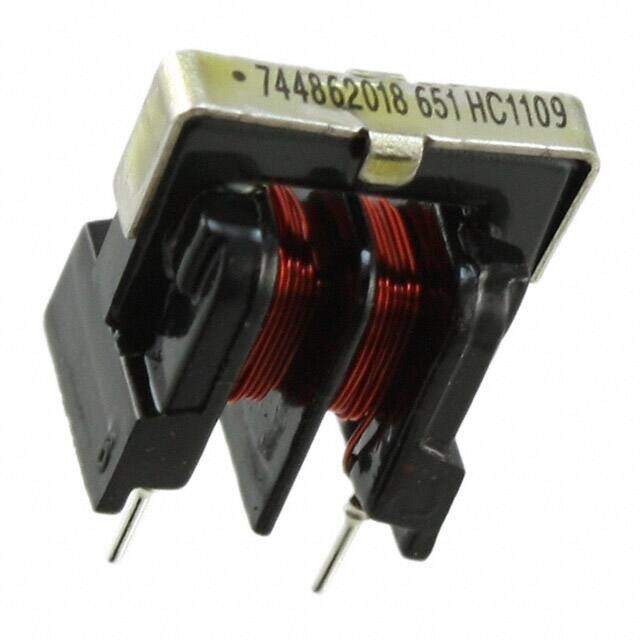

744862018
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 1.8MH 1A 2LN TH
PDF
/
Buying Options
Total Price: USD $5.61
Unit Price: USD $5.611335
≥1 USD $5.611335
≥176 USD $2.239807
≥528 USD $2.164972
≥968 USD $2.128211
Inventory: 5575
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Number of Pins 4
Core Material Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TFC
Size / Dimension 0.669Lx0.433W 17.00mmx11.00mm
Tolerance 50%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Resistance 310mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Depth 11mm
Current Rating 1A
Voltage - Rated AC 400V
Lead Pitch 8mm
Inductance 1.8 mH
Test Frequency 10kHz
Current 1A
Max DC Current 1A
Filter Type Power Line
Number of Lines 2
DC Resistance (DCR) (Max) 310mOhm
Current Rating (Max) 1A
Inductance @ Frequency 1.8mH @ 10kHz
Dimensions
Height 17mm
Length 17mm
Width 11mm
Height (Max) 0.669 17.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
