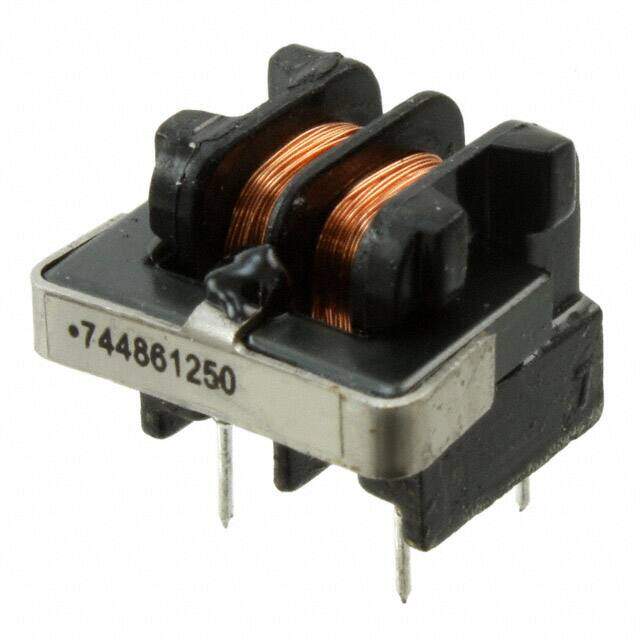

744861250 image
Favorite
744861250 image
Favorite
RoHS
RoHS RoHS compliant
Package Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description CMC 25MH 250MA 2LN TH
PDF
/
Buying Options
Total Price: USD $3.09
Unit Price: USD $3.086155
≥1 USD $3.086155
≥10 USD $2.91147
≥100 USD $2.746667
≥500 USD $2.591188
≥1000 USD $2.44452
Inventory: 1424
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height (Max) 0.481 12.23mm
Width 15.5mm
Length 17mm
Height 12.2174mm

Technical

Inductance @ Frequency 25mH @ 10kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 3.6Ohm
Number of Lines 2
Filter Type Power Line
Max DC Current 250mA
Current 250mA
Inductance 25 mH
Lead Diameter 600 μm
Lead Pitch 8mm
Voltage - Rated AC 400V
Current Rating 250mA
Depth 15.23mm
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 3.6Ohm
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 50%
Size / Dimension 0.669Lx0.600W 17.00mmx15.23mm
Series WE-TFCH
Packaging Tray
Operating Temperature -40°C~125°C

Physical

Core Material Ferrite
Number of Pins 4
Package / Case Horizontal, 4 PC Pin
Mounting Type Through Hole
Mount Radial, Through Hole

Supply Chain

Factory Lead Time 16 Weeks
