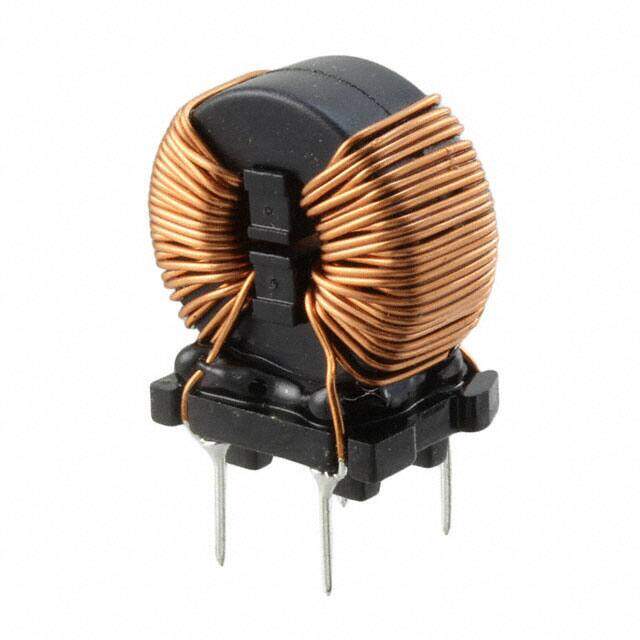

7448030333
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 33MH 2.5A 2LN TH
PDF
/
Buying Options
Total Price: USD $9.12
Unit Price: USD $9.116576
≥1 USD $9.116576
≥10 USD $8.600548
≥100 USD $8.113722
≥500 USD $7.654453
≥1000 USD $7.221186
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 0.984 25.00mm
Width 13.5128mm
Length 21.9964mm
Height 24.9936mm
Technical
Inductance @ Frequency 33mH @ 10kHz
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 90mOhm
Number of Lines 2
Filter Type Power Line
Max DC Current 2.5A
Test Frequency 10kHz
Inductance 33 mH
Voltage - Rated AC 250V
Current Rating 2.5A
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 50%
Size / Dimension 0.866Lx0.531W 22.00mmx13.50mm
Series WE-CMBNC
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
