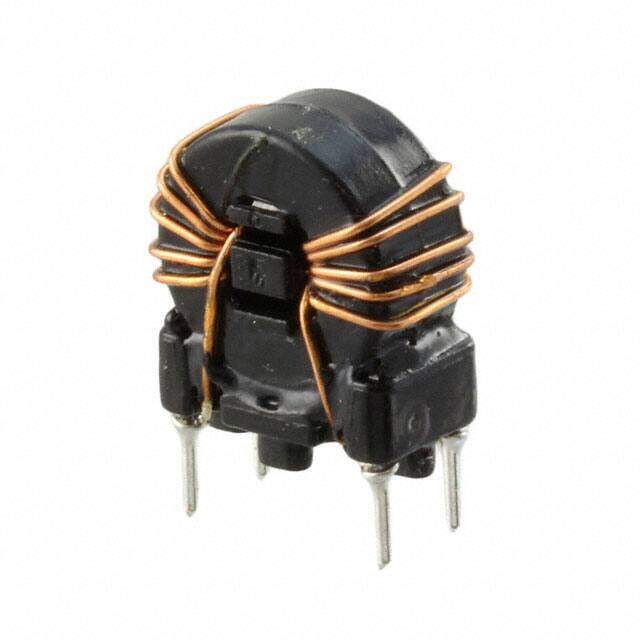

7448014501
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 400UH 4.5A 2LN TH
PDF
/
Buying Options
Total Price: USD $14.24
Unit Price: USD $14.241026
≥1 USD $14.241026
≥300 USD $5.682231
≥600 USD $5.493174
≥900 USD $5.398645
Inventory: 5790
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-CMBNC
Size / Dimension 0.591Lx0.295W 15.00mmx7.50mm
Tolerance 50%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Shielding Unshielded
Current Rating 4.5A
Voltage - Rated AC 250V
Inductance 400 μH
Test Frequency 10kHz
Max DC Current 4.5A
Filter Type Power Line
Number of Lines 2
DC Resistance (DCR) (Max) 22mOhm
Current Rating (Max) 4.5A
Inductance @ Frequency 400μH @ 10kHz
Dimensions
Height 16.002mm
Length 15.0114mm
Width 7.493mm
Height (Max) 0.630 16.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
