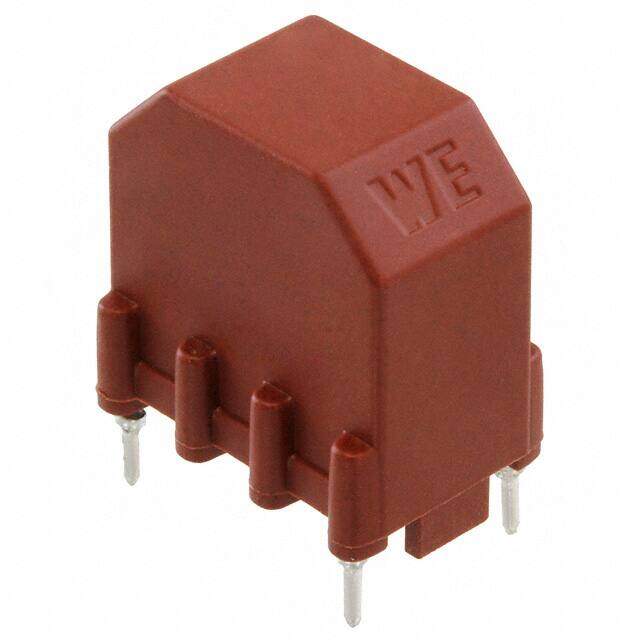

7446122001 image
Favorite
7446122001 image
Favorite

7446122001

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description COMMON MODE CHOKE 1MH 2A 2LN TH
PDF
/
Buying Options
Total Price: USD $2.92
Unit Price: USD $2.9216
≥1 USD $2.9216
≥10 USD $2.8688
≥100 USD $2.6488
≥500 USD $2.5344
≥1000 USD $2.2616
≥3000 USD $2.1472
Inventory: 1093
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Number of Pins 4

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-LF
Size / Dimension 0.728Lx0.531W 18.50mmx13.50mm
Tolerance 30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Resistance 60mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Depth 13.5mm
Current Rating 2A
Voltage - Rated AC 250V
Inductance 1 mH
Test Frequency 50Hz
Current 2A
Max DC Current 2A
Filter Type Power Line
Inductance Tolerance 30%
Number of Lines 2
DC Resistance (DCR) (Max) 60mOhm
Current Rating (Max) 2A
Inductance @ Frequency 1mH @ 10kHz

Dimensions

Height 20.5mm
Length 18.5mm
Width 13.4874mm
Height (Max) 0.807 20.50mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
