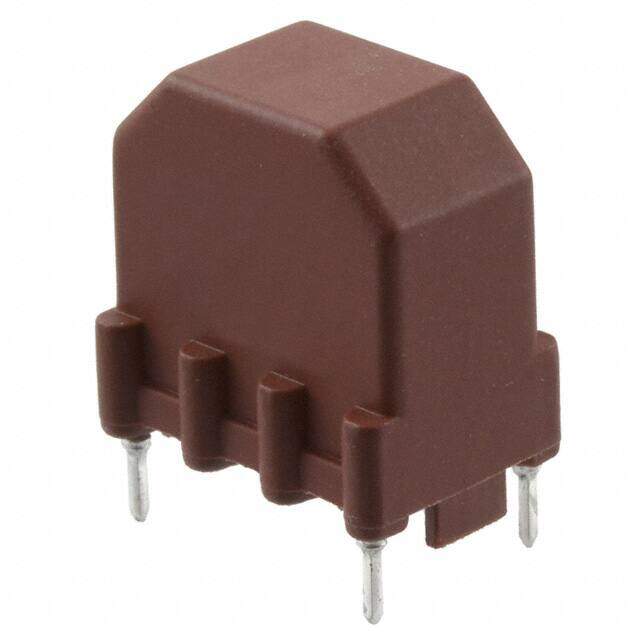

7446121007
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
CMC 6.8MH 1A 2LN TH
PDF
/
Buying Options
Total Price: USD $2.74
Unit Price: USD $2.736599
≥1 USD $2.736599
≥10 USD $2.581694
≥100 USD $2.435565
≥500 USD $2.297707
≥1000 USD $2.167639
Inventory: 1517
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Number of Pins 4
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-LF
Size / Dimension 0.728Lx0.531W 18.50mmx13.50mm
Tolerance 30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Resistance 300mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Depth 13.5mm
Current Rating 1A
Voltage - Rated AC 250V
Inductance 6.8 mH
Test Frequency 50Hz
Current 1A
Max DC Current 1A
Filter Type Power Line
Inductance Tolerance 30%
Number of Lines 2
DC Resistance (DCR) (Max) 300mOhm
Current Rating (Max) 1A
Inductance @ Frequency 6.8mH @ 10kHz
Dimensions
Height 20.5mm
Length 18.5mm
Width 13.4874mm
Height (Max) 0.807 20.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
