744220
RoHS
RoHS compliant

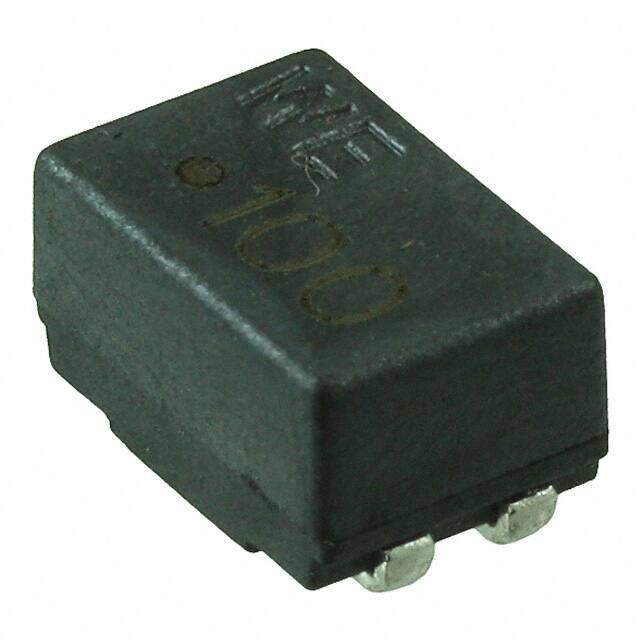

RoHS compliantPackage Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
CMC 4.7MH 500MA 2LN 20 KOHM SMD
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.10675
≥1 USD $1.10675
≥10 USD $0.9082
≥100 USD $0.8797
≥500 USD $0.8512
≥1000 USD $0.8227
Inventory: 30795
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 0.205 5.20mm
Width 6mm
Length 9.2mm
Height 5mm
Technical
Inductance @ Frequency 4.7mH @ 100kHz
Impedance @ Frequency 20kOhms @ 1MHz
Current Rating (Max) 500mA
Self Resonant Frequency 100kHz
DC Resistance (DCR) (Max) 750mOhm
Number of Lines 2
Inductance Tolerance 50%
Filter Type Signal Line
Max DC Current 500mA
Current 500mA
Impedance 20kOhm
Test Frequency 1kHz
Inductance 4.7 mH
Voltage - Rated AC 80V
Current Rating 500mA
Depth 6mm
Voltage - Rated DC 80V
Voltage - Rated 80V
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 750mOhm
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 50%
Size / Dimension 0.362Lx0.236W 9.20mmx6.00mm
Series WE-SL2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Core Material Ferrite
Weight 500.992773mg
Number of Pins 4
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
