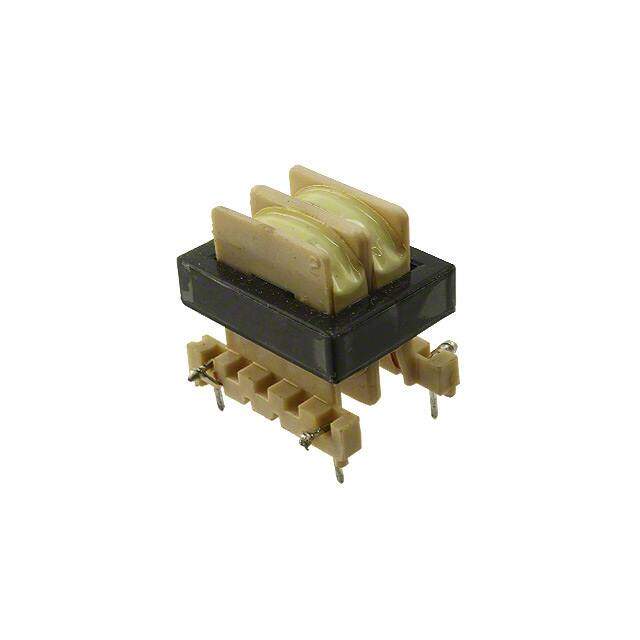

 CME2425-4 image
Favorite
 CME2425-4 image
Favorite

CME2425-4

Triad Magnetics
RoHS
RoHS RoHS compliant
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description GLOVE, POLYAMIDE, L/FREE, PU, SIZE 6 - More Details
PDF
/
Inventory: 7193
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 27.305mm

Technical

Inductance @ Frequency 6mH @ 10kHz
DC Resistance (DCR) (Max) 202mOhm
Number of Lines 2
Filter Type Power Line
Max DC Current 1.28A
Current 1.28A
Element Configuration Dual
Inductance 6 mH
Approval Agency CSA, IEC, UL, VDE
Voltage - Rated AC 250V
Depth 26.67mm
Shielding Unshielded
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature ESD
Tolerance 10%
Size / Dimension 1.050Lx1.050W 26.67mmx26.67mm
Series CME
Published 2006
Packaging Bulk
Operating Temperature -40°C~80°C

Physical

Weight 77.564295g
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 17 Weeks
