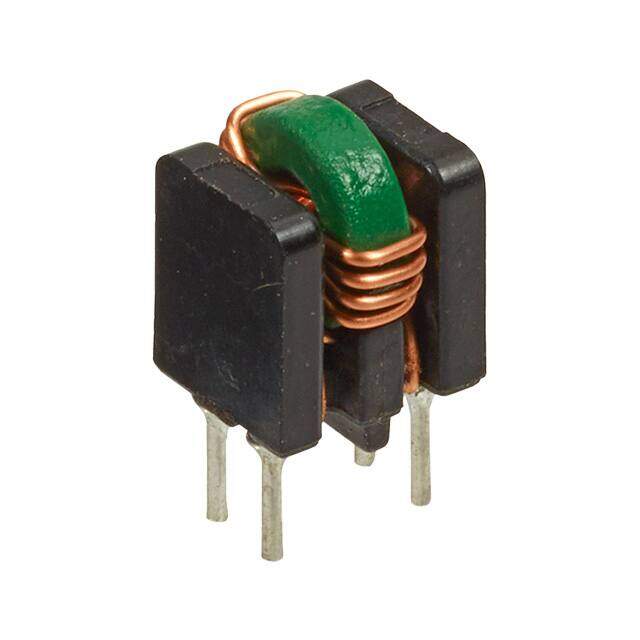

TCK-117
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 52UH 2LN TH
PDF
/
Buying Options
Total Price: USD $6.56
Unit Price: USD $6.556
≥1 USD $6.556
≥10 USD $5.39
≥100 USD $4.953344
≥500 USD $4.6618
≥1000 USD $4.50604
Inventory: 521
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Operating Temperature -40°C~105°C
Packaging Bag
Size / Dimension 0.335Lx0.295W 8.50mmx7.50mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Resistance 15mOhm
Voltage - Rated DC 500V
Inductance 52 μH
Number of Lines 2
DC Resistance (DCR) (Max) 15mOhm
Inductance @ Frequency 52μH @ 10kHz
Dimensions
Height (Max) 0.413 10.50mm
Compliance
RoHS Status ROHS3 Compliant
