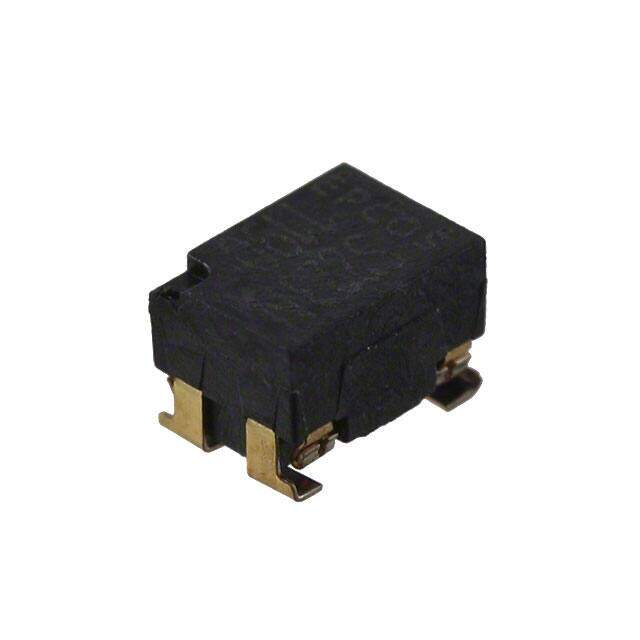

B82799C474N1 image
Favorite
B82799C474N1 image
Favorite

B82799C474N1

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package Horizontal, 4 L-Lead
Category Filters / Common Mode Chokes
Description CMC 470UH 200MA 2LN SMD AEC-Q200
PDF
/
Inventory: 9798
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Horizontal, 4 L-Lead
Weight 90.009736mg
Core Material Ferrite

Technical

Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Published 1999
Series B82799
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance 30%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Voltage - Rated DC 80V
Depth 3.4mm
Current Rating 200mA
Military Standard Not
Voltage - Rated AC 42V
Inductance 470 μH
Test Frequency 100kHz
Current 200mA
Max DC Current 200mA
Filter Type Signal Line
DC Current 200mA
Number of Lines 2
DC Resistance (DCR) (Max) 320mOhm Typ
Current Rating (Max) 200mA
Inductance @ Frequency 470μH @ 100kHz

Dimensions

Height 3.2004mm
Length 4.4958mm
Width 3.2004mm
Height (Max) 0.126 3.20mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
