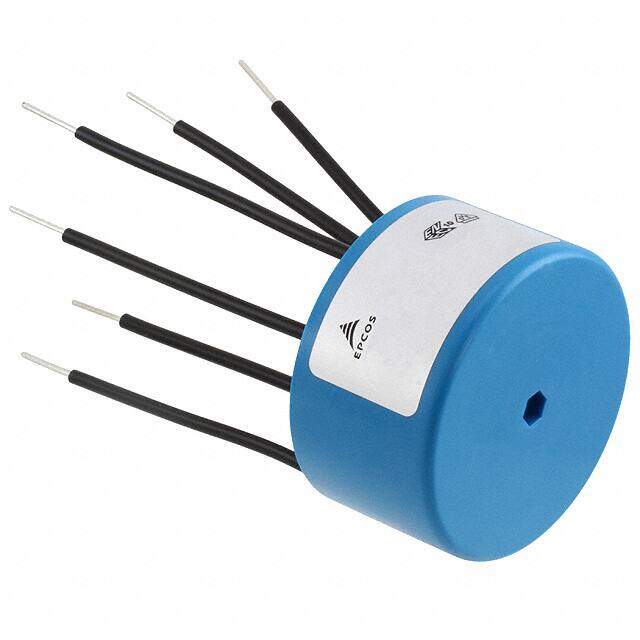

B82747F4253N020
RoHS
RoHS compliant
RoHS compliantPackage /
Category Filters / Common Mode Chokes
Description
Common Mode Chokes Triple 1.3mH 10kHz 25A 7.5mOhm DCR Box
PDF
/
Inventory: 9338
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2016
Series B82747
Size / Dimension 2.874Dia 73.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated AC 440/250V
Approval Agency ENEC, VDE
Filter Type Power Line
Number of Lines 3
DC Resistance (DCR) (Max) 7.5mOhm Typ
Current Rating (Max) 25A
Inductance @ Frequency 1.3mH @ 10kHz
Dimensions
Height (Max) 1.575 40.00mm
Compliance
RoHS Status ROHS3 Compliant
