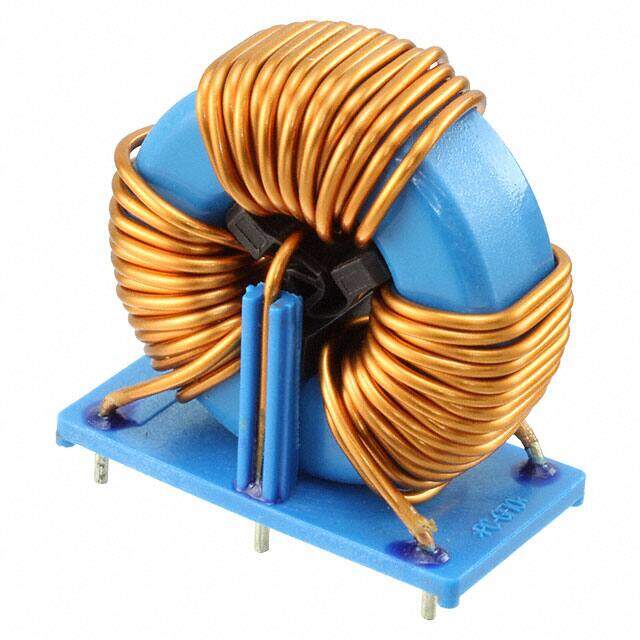

B82746S4103A021
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 6 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 2MH 10A 3LN TH
PDF
/
Buying Options
Total Price: USD $18.77
Unit Price: USD $18.771844
≥1 USD $18.771844
≥192 USD $7.490095
≥480 USD $7.239331
≥960 USD $7.115918
Inventory: 4269
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.850 47.00mm
Technical
Inductance @ Frequency 2mH @ 10kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 9.6mOhm Typ
Number of Lines 3
Filter Type Power Line
Terminal Placement RADIAL
Inductor Application POWER INDUCTOR
Test Frequency 0.01MHz
Inductance 2000 μH
Lead Diameter 1.4 mm
Approval Agency UR
Voltage - Rated AC 500/300V
Construction Rectangular
Number of Functions 3
Shielding NO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 50%
Size / Dimension 1.772Lx0.906W 45.00mmx23.00mm
Series B82746
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WIRE
Surface Mount NO
Package / Case Vertical, 6 PC Pin
Mounting Type Through Hole
Supply Chain
Factory Lead Time 18 Weeks
