B82731H2112A030
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description

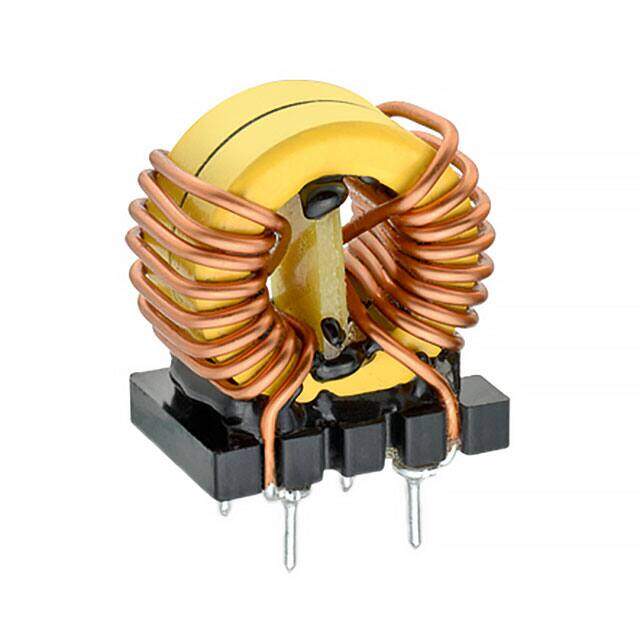

Common Mode Chokes Dual 10mH 10kHz 1.1A 400mOhm DCR Thru-Hole Box
PDF
/
Inventory: 2410
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 0.610 15.50mm
Technical
Inductance @ Frequency 10mH @ 10kHz
Current Rating (Max) 1.1A
DC Resistance (DCR) (Max) 400mOhm Typ
Number of Lines 2
Filter Type Power Line
Approval Agency ENEC, UR, VDE
Voltage - Rated AC 250V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.827Lx0.827W 21.00mmx21.00mm
Series B82731
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Package / Case Horizontal, 4 PC Pin
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
