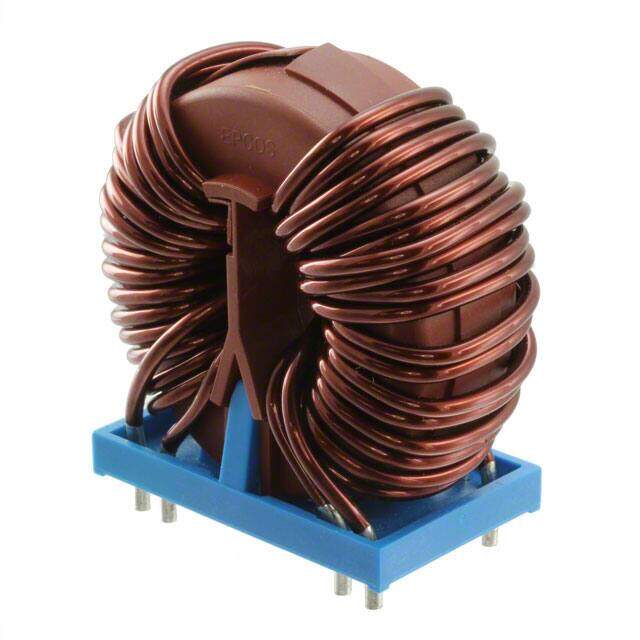

B82727E6443A040
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 8 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 1MH 44A 2LN TH
PDF
/
Buying Options
Total Price: USD $11.19
Unit Price: USD $11.1936
≥1 USD $11.1936
≥10 USD $10.7228
Inventory: 190
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Through Hole
Package / Case Vertical, 8 PC Pin
Surface Mount NO
Terminal Shape WIRE
Core Material Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2015
Series B82727
Size / Dimension 2.559Lx1.378W 65.00mmx35.00mm
Tolerance 50%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Voltage - Rated DC 1000V 1kV
Packing Method Bulk
Shielding NO
Number of Functions 4
Construction Rectangular
Reach Compliance Code unknown
Voltage - Rated AC 600V
Approval Agency UR
Lead Length 5mm
Inductance 1000 μH
Test Frequency 0.1MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Filter Type Power Line
Number of Lines 2
DC Resistance (DCR) (Max) 1.35mOhm Typ
Current Rating (Max) 44A
Inductance @ Frequency 1mH @ 100kHz
Dimensions
Height (Max) 2.402 61.00mm
Compliance
RoHS Status ROHS3 Compliant
