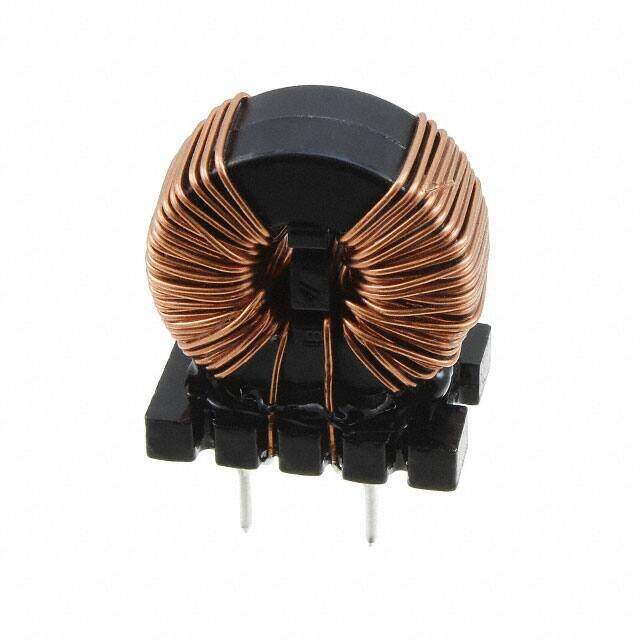

B82503UE1 image
Favorite
B82503UE1 image
Favorite
RoHS
RoHS RoHS compliant
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description CMC 25UH 15A 2LN TH
PDF
/
Inventory: 8689
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height (Max) 1.130 28.70mm

Technical

Inductance @ Frequency 25μH @ 100kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 15mOhm Typ
Number of Lines 2
Filter Type Power Line
Voltage - Rated AC 400V
Voltage - Rated DC 450V
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 2.283Lx0.906W 58.00mmx23.00mm
Series B82503
Packaging Tray

Physical

Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
