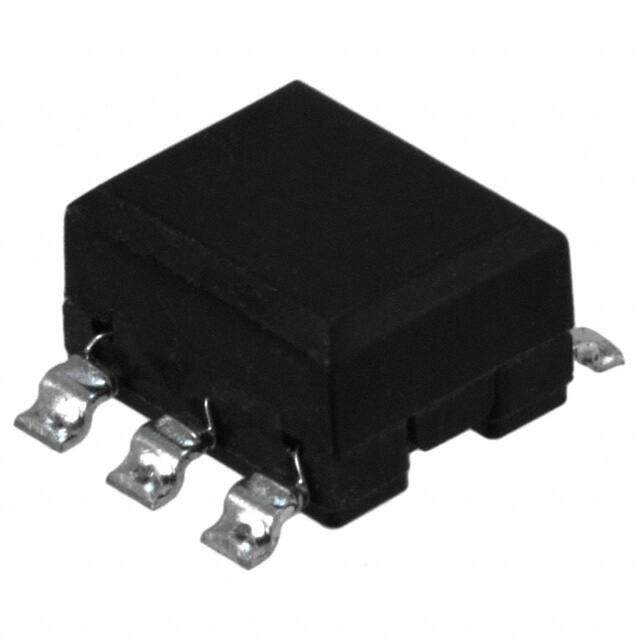

CM04RC08T
RoHS
/
Package 6-SMD, Gull Wing
Category Filters / Common Mode Chokes
Description
Common Mode Chokes / Filters COMMON MODE CHK COIL RC TYP
PDF
/
Buying Options
Total Price: USD $29.91
Unit Price: USD $29.9098
≥1 USD $29.9098
≥10 USD $24.54135
≥100 USD $23.7747
≥500 USD $23.00805
≥1000 USD $22.24045
Inventory: 2745
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 6mm
Height 2.794mm
Technical
Insulation Resistance-Min 100MOhm
Rated Voltage 50V
Impedance @ Frequency 1kOhm @ 200MHz
DC Resistance (DCR) (Max) 200mOhm
Number of Lines 3
Filter Type Power, Signal Line
Halogen Free Halogen Free
Max DC Current 500mA
Current 500mA
Impedance 1kOhm
Depth 9.5mm
Number of Functions 3
Packing Method TAPE AND REEL
Voltage - Rated DC 50V
HTS Code 8504.50.80.00
Additional Feature IMPEDANCE AT 200 MHZ
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 0.209Lx0.354W 5.30mmx9.00mm
Series CM04
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -25°C~105°C
Physical
Core Material Ferrite
Package / Case 6-SMD, Gull Wing
Mounting Type Surface Mount
Mount Surface Mount
