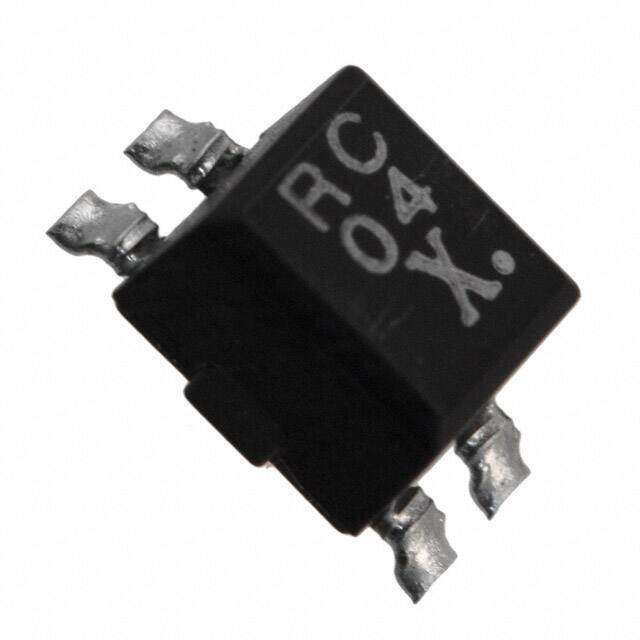

CM04RC04T image
Favorite
CM04RC04T image
Favorite

CM04RC04T

Taiyo Yuden
RoHS
/
Package Horizontal, 4 Gull Wing
Category Filters / Common Mode Chokes
Description FILTER, COMMON MODE CHOKE ,50VDC, SMD
PDF
/
Inventory: 3637
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Length 6mm
Height 4.7mm

Technical

Impedance @ Frequency 900Ohm @ 20MHz
DC Resistance (DCR) (Max) 100mOhm
Number of Lines 2
Filter Type Power, Signal Line
Halogen Free Halogen Free
Max DC Current 1.3A
Current 1.3A
Element Configuration Dual
Impedance 900Ohm
Test Frequency 20MHz
Insulation Resistance 100MOhm
Current Rating 1.3A
Reach Compliance Code unknown
Depth 9.5mm
Number of Functions 2
Packing Method TAPE AND REEL
Voltage - Rated DC 50V
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 0.205Lx0.354W 5.20mmx9.00mm
Series CM04
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -25°C~105°C

Physical

Core Material Ferrite
Number of Pins 4
Package / Case Horizontal, 4 Gull Wing
Mounting Type Surface Mount
Mount Surface Mount
