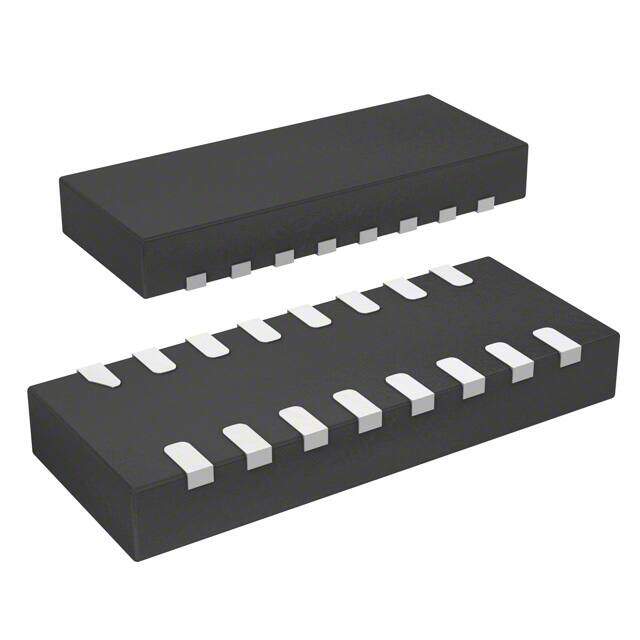

ECMF06-6AM16
RoHS
RoHS compliant
RoHS compliantPackage 16-UFDFN
Category Filters / Common Mode Chokes
Description
CMC 100MA 6LN SMD ESD
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.67165
≥1 USD $0.67165
≥10 USD $0.551
≥100 USD $0.5339
≥500 USD $0.5168
≥1000 USD $0.4997
Inventory: 86155
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 3.3mm
Height 558.8μm
Technical
Max Breakdown Voltage 6V
DC Resistance (DCR) (Max) 4Ohm
Number of Lines 6
Filter Type Signal Line
Bandwidth 6 GHz
Direction Bidirectional
Clamping Voltage 11V
Max DC Current 100mA
Current 100mA
Analog IC - Other Type ANALOG CIRCUIT
Test Frequency 900MHz
Base Part Number ECMF06
Frequency 900MHz
Depth 1.4mm
Terminal Pitch 0.4mm
Number of Functions 1
Terminal Position QUAD
HTS Code 8542.39.00.01
Voltage - Rated 30kV
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Termination Flat
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature ESD
JESD-609 Code e4
Size / Dimension 0.130Lx0.053W 3.30mmx1.35mm
Series ECMF
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 16
Package / Case 16-UFDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 9 Weeks
