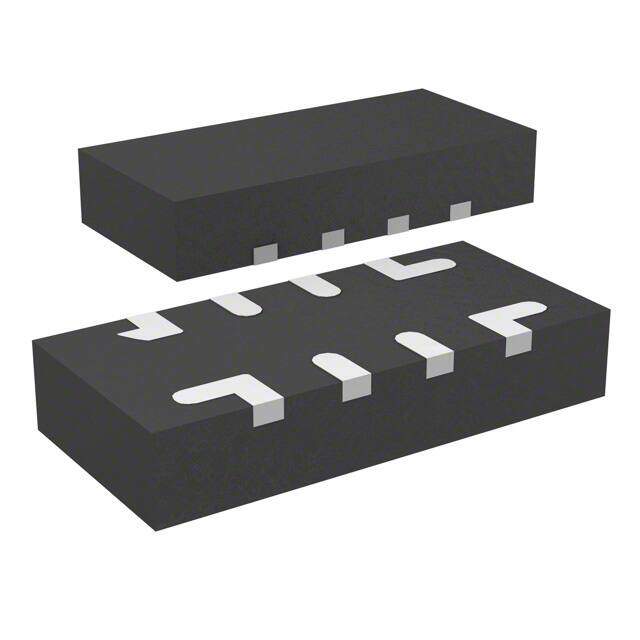

ECMF02-4CMX8
RoHS
RoHS compliant
RoHS compliantPackage 8-UFDFN
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 2LN SMD ESD
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.53328
≥100 USD $0.488928
≥500 USD $0.4444
≥1000 USD $0.395472
≥3000 USD $0.373296
Inventory: 206482
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 558.8μm
Technical
DC Resistance (DCR) (Max) 4Ohm
Number of Lines 2
Filter Type Signal Line
Base Part Number ECMF02
Depth 1.25mm
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Termination Flat
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature ESD
JESD-609 Code e4
Size / Dimension 0.098Lx0.047W 2.50mmx1.20mm
Series ECMF
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 8
Package / Case 8-UFDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Factory Lead Time 9 Weeks
