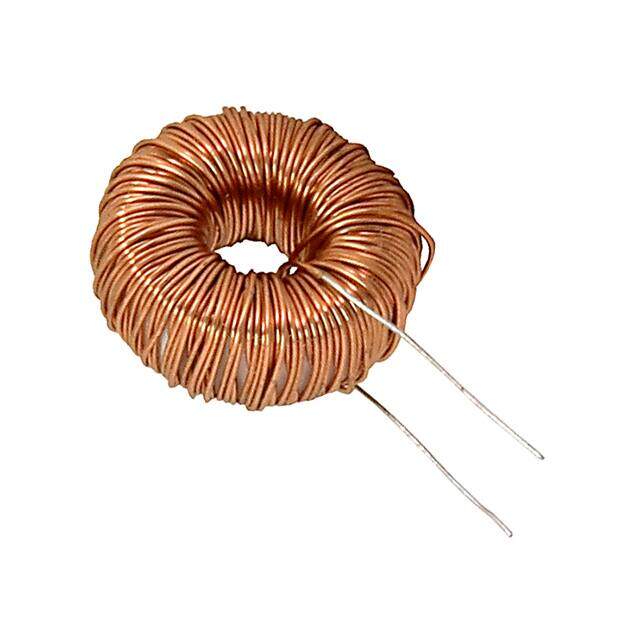

DSO1-20-0001
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Filters / Common Mode Chokes
Description
Fixed Inductors DSO Storage choke 0.63A
PDF
/
Buying Options
Total Price: USD $4.55
Unit Price: USD $4.547886
≥1 USD $4.547886
≥300 USD $1.760599
≥600 USD $1.698893
≥900 USD $1.667383
Inventory: 986
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Self Resonant Frequency 15MHz
DC Resistance (DCR) (Max) 750mOhm
Number of Lines 2
Inductor Type GENERAL PURPOSE INDUCTOR
Inductor Application POWER INDUCTOR
Max DC Current 630mA
Inductance 1 nH
Lead Diameter 0.3 mm
Construction Toroidal
Depth 8.5mm
Number of Functions 1
Shielding NO
Voltage - Rated DC 600V
HTS Code 8504.50.80.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Tolerance 15%
Size / Dimension 0.748Lx0.335W 19.00mmx8.50mm
Series DSO
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Weight 99.988768mg
Terminal Shape WIRE
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 23 Weeks
