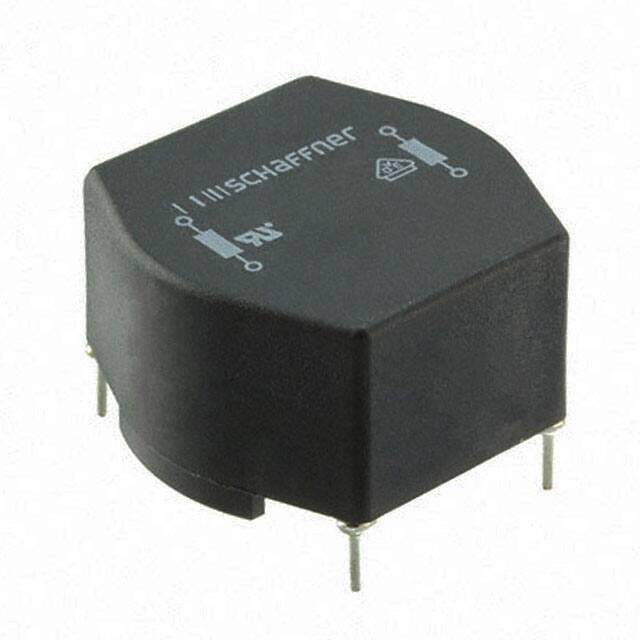

RN143-2-02 image
Favorite
RN143-2-02 image
Favorite

RN143-2-02

Schaffner EMC Inc.
RoHS
/
Package Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description Common Mode Filters / Chokes RN143-2/02
PDF
/
Inventory: 3280
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Horizontal, 4 PC Pin
Number of Pins 4

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Published 1999
Series RN
Size / Dimension 1.303Lx1.280W 33.10mmx32.50mm
Tolerance 50%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Resistance 230mOhm
Voltage - Rated DC 250V
Shielding Unshielded
Depth 32.8mm
Current Rating 2A
Military Standard Not
Voltage - Rated AC 250V
Approval Agency UR, VDE
Operating Frequency 50/60Hz Hz
Inductance 10 mH
Test Frequency 10kHz
Current 2A
Max DC Current 2A
Lead/Base Style Pin
Filter Type Power Line
DC Current 2A
Series Resistance 230mOhm
Number of Lines 2
DC Resistance (DCR) (Max) 230mOhm Typ
Self Resonant Frequency 1kHz
Current Rating (Max) 2A Typ
Rated Voltage 300V
Inductance @ Frequency 10mH @ 10kHz

Dimensions

Height 19.9898mm
Length 33.1mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
