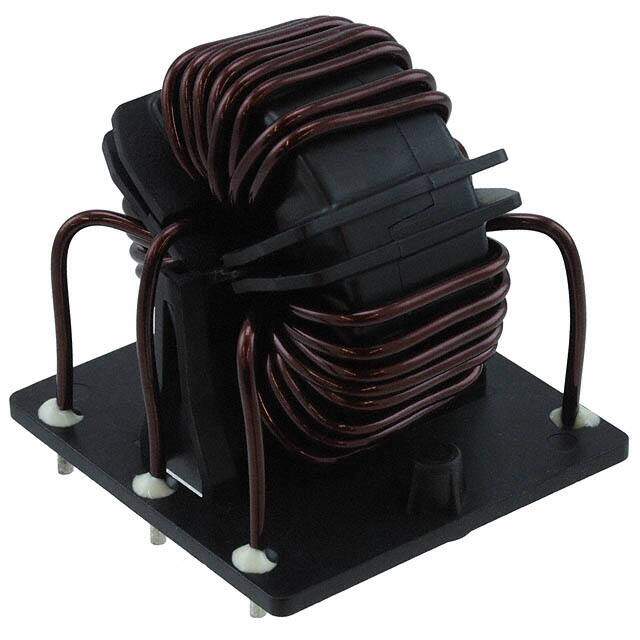

RB6532-16-0M8
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 6 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 16A 0.80mH 3-WIRE VERTICAL
PDF
/
Buying Options
Total Price: USD $17.74
Unit Price: USD $17.7408
≥1 USD $17.7408
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Vertical, 6 PC Pin
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2014
Series RB
Size / Dimension 2.283Lx2.165W 58.00mmx55.00mm
Tolerance 50%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
HTS Code 8504.50.80.00
Voltage - Rated DC 1kV
Depth 55mm
Current Rating 16A
Voltage - Rated AC 600V
Lead Pitch 20.32mm
Lead Diameter 2 mm
Inductance 800 μH
Max DC Current 16A
Filter Type Power Line
Series Resistance 4.7mOhm
Number of Lines 3
DC Resistance (DCR) (Max) 4.7mOhm Typ
Self Resonant Frequency 400Hz
Inductance @ Frequency 800μH @ 1kHz
Dimensions
Height 58mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
