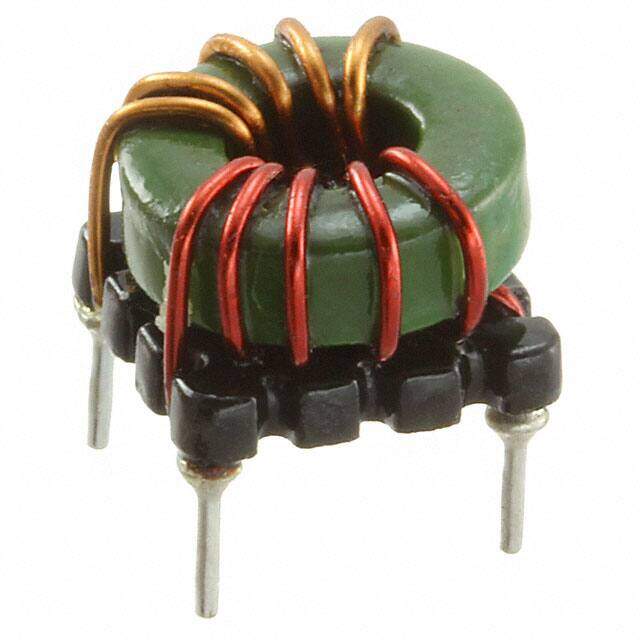

CMC-10
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 4A 2LN TH
PDF
/
Buying Options
Total Price: USD $8.72
Unit Price: USD $8.7208
≥1 USD $8.7208
≥10 USD $8.5096
≥100 USD $8.30104
≥500 USD $7.4712
≥1000 USD $7.263696
≥3000 USD $6.744848
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Horizontal, 4 PC Pin
Weight 2g
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series CMC
Size / Dimension 0.433Lx0.433W 11.00mmx11.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Inductance 55 μH
Current 4A
Max DC Current 4A
Filter Type Power Line
Number of Lines 2
DC Resistance (DCR) (Max) 7mOhm
Current Rating (Max) 4A
Dimensions
Height 8.8mm
Length 11mm
Width 11mm
Height (Max) 0.346 8.80mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
