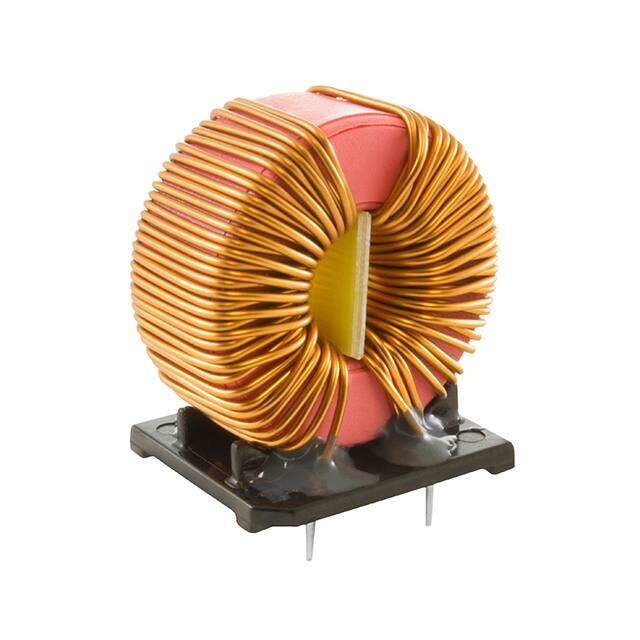

PH9455.826NL image
Favorite
PH9455.826NL image
Favorite
RoHS
RoHS RoHS compliant
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description CMC 82MH 3A 2LN 37 KOHM TH
PDF
/
Buying Options
Total Price: USD $6.91
Unit Price: USD $6.908
≥1 USD $6.908
≥10 USD $5.6804
≥100 USD $5.219456
≥500 USD $4.912547
≥1000 USD $4.682286
≥3000 USD $4.605533
Inventory: 418
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height (Max) 1.102 28.00mm
Width 19mm
Length 30mm

Technical

Output Impedance 37000Ohm Ω
Inductance @ Frequency 82mH @ 130kHz
Impedance @ Frequency 37kOhm @ 130kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 150mOhm
Number of Lines 2
Rated Current 3A
Filter Type DATA LINE FILTER
Inductance 82 mH
Voltage - Rated AC 250V
Number of Functions 2
HTS Code 8504.50.80.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.181Lx0.748W 30.00mmx19.00mm
Packaging Tray
Operating Temperature -40°C~125°C

Physical

Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole

Supply Chain

Factory Lead Time 15 Weeks
