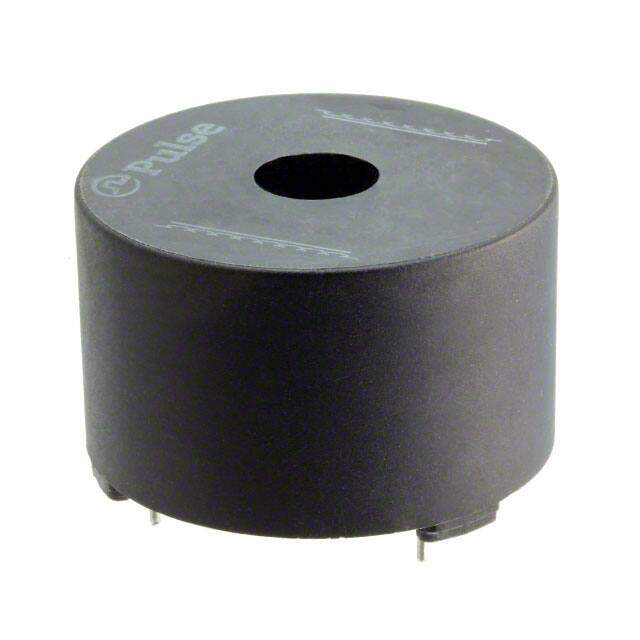

PE-96187NL
RoHS
RoHS compliant
RoHS compliantPackage Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes 3.3K UH 30% 8A
PDF
/
Buying Options
Total Price: USD $9
Unit Price: USD $9.003868
≥1 USD $9.003868
≥200 USD $3.484437
≥500 USD $3.362337
≥1000 USD $3.301944
Inventory: 6215
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 27.6606mm
Diameter 43.18mm
Technical
Current Rating (Max) 8A Typ
Self Resonant Frequency 500kHz
DC Resistance (DCR) (Max) 33mOhm
Number of Lines 2
Filter Type Power Line
Lead/Base Style Pin
Max DC Current 8A
Current 8A
Inductance 3.3 mH
Number of Functions 2
Shielding Unshielded
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 30%
Size / Dimension 1.700Dia 43.18mm
Published 2003
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Package / Case Horizontal, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
