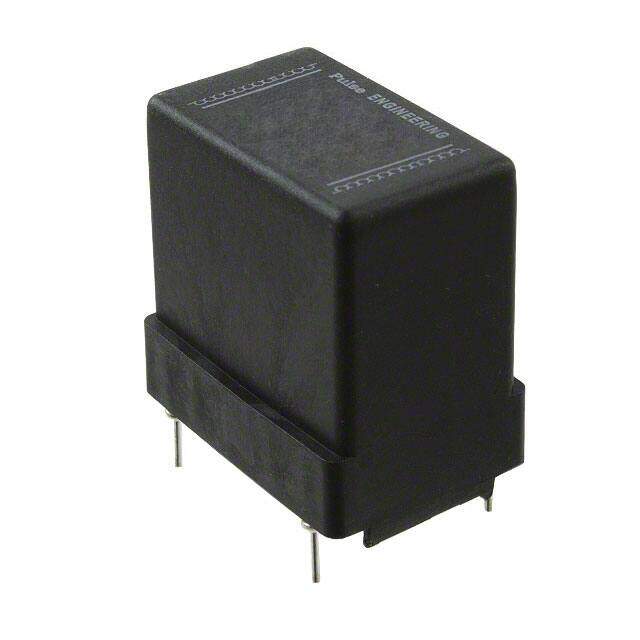

PE-96179NL
RoHS
RoHS compliant
RoHS compliantPackage Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes INDUCTOR
PDF
/
Inventory: 7631
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2003
Size / Dimension 0.909Lx0.614W 23.10mmx15.60mm
Tolerance 30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
HTS Code 8504.50.80.00
Number of Functions 2
Depth 15.6mm
Military Standard Not
Lead Pitch 12.7mm
Inductance 1.2 mH
Current 3.15A
Max DC Current 3.15A
Lead/Base Style Pin
Filter Type Power Line
DC Current 3.15A
Number of Lines 2
DC Resistance (DCR) (Max) 40mOhm
Self Resonant Frequency 500kHz
Current Rating (Max) 3.15A Typ
Dimensions
Height 27.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
