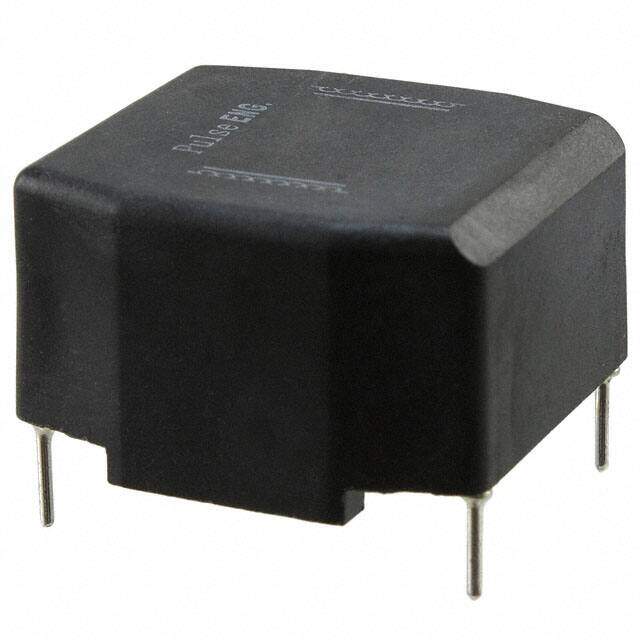

PE-96177NL image
Favorite
PE-96177NL image
Favorite
RoHS
RoHS RoHS compliant
Package Horizontal, 4 PC Pin
Category Filters / Common Mode Chokes
Description Common Mode Filters / Chokes INDUCTOR
PDF
/
Inventory: 3963
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Horizontal, 4 PC Pin

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Published 2003
Size / Dimension 1.102Lx1.070W 28.00mmx27.18mm
Tolerance 30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
HTS Code 8504.50.80.00
Number of Functions 2
Depth 27.18mm
Inductance 2.2 mH
Current 3.15A
Max DC Current 3.15A
Lead/Base Style Pin
Filter Type Power Line
Number of Lines 2
DC Resistance (DCR) (Max) 60mOhm
Self Resonant Frequency 500kHz
Current Rating (Max) 3.15A Typ

Dimensions

Height 16.51mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
