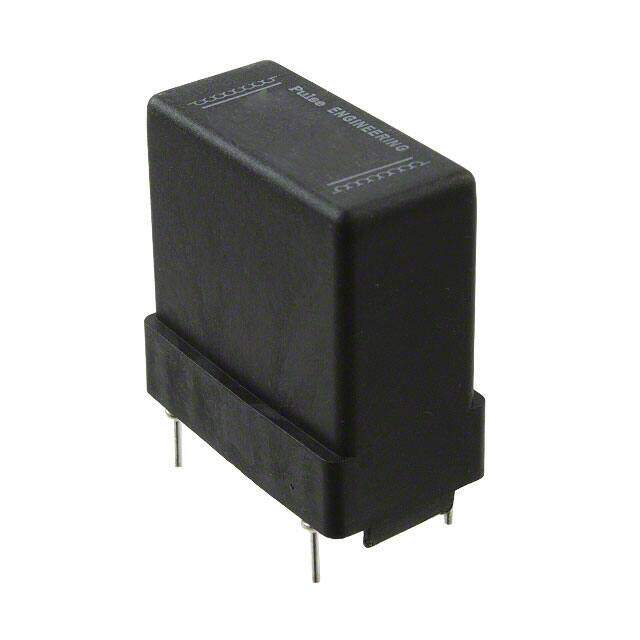

PE-96173NL image
Favorite
PE-96173NL image
Favorite
RoHS
RoHS RoHS compliant
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description INDUCT COM MODE EMI 500KHZ 5.6MH
PDF
/
Buying Options
Total Price: USD $55.47
Unit Price: USD $55.46765
≥1 USD $55.46765
≥10 USD $45.5126
≥100 USD $44.09045
≥500 USD $42.6683
≥1000 USD $41.2452
Inventory: 2009
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 33mm
Height 34.04mm

Technical

Current Rating (Max) 3.15A Typ
Self Resonant Frequency 500kHz
DC Resistance (DCR) (Max) 100mOhm
Number of Lines 2
DC Current 3.15A
Filter Type Power Line
Lead/Base Style Pin
Max DC Current 3.15A
Current 3.15A
Inductance 5.6 mH
Lead Pitch 22.86mm
Military Standard Not
Depth 18.29mm
Number of Functions 2
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 30%
Size / Dimension 1.299Lx0.720W 33.00mmx18.29mm
Published 2003
Packaging Tube
Operating Temperature -40°C~125°C

Physical

Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 11 Weeks
