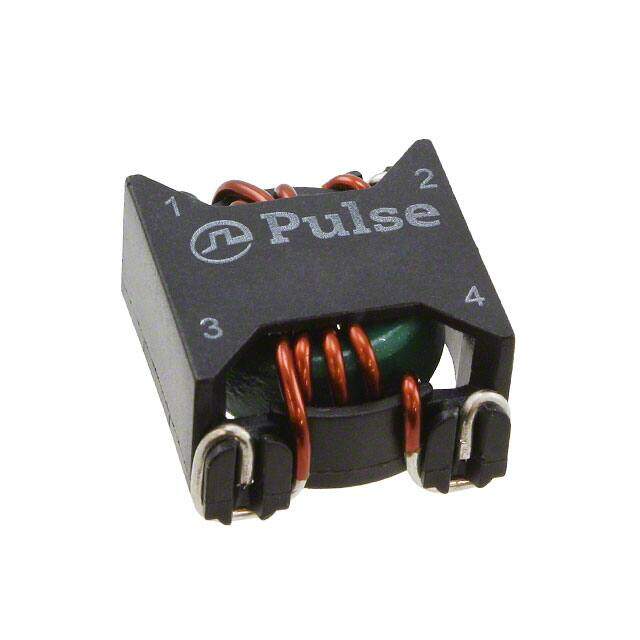

PA2756NL image
Favorite
PA2756NL image
Favorite
RoHS
RoHS RoHS compliant
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description Common Mode Chokes Dual 484uH 8A 7.7mOhm DCR SMD
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
≥10 USD $1.78464
≥100 USD $1.64472
≥500 USD $1.46989
≥1000 USD $1.22489
≥3000 USD $1.189892
Inventory: 1197
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height 9.906mm

Technical

Turns Ratio - Primary:Secondary 1:1
DC Resistance (DCR) (Max) 7.7mOhm
Number of Lines 2
DC Current 8A
Filter Type Power Line
Current 8A
Inductance 484 μH
Depth 19.56mm
Number of Functions 2
HTS Code 8504.50.80.00
Additional Feature 0.0077 DC RESISTANCE MAX AVAILABLE
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.670Lx0.770W 17.02mmx19.56mm
Published 2012
Packaging Tube
Operating Temperature -40°C~130°C

Physical

Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
