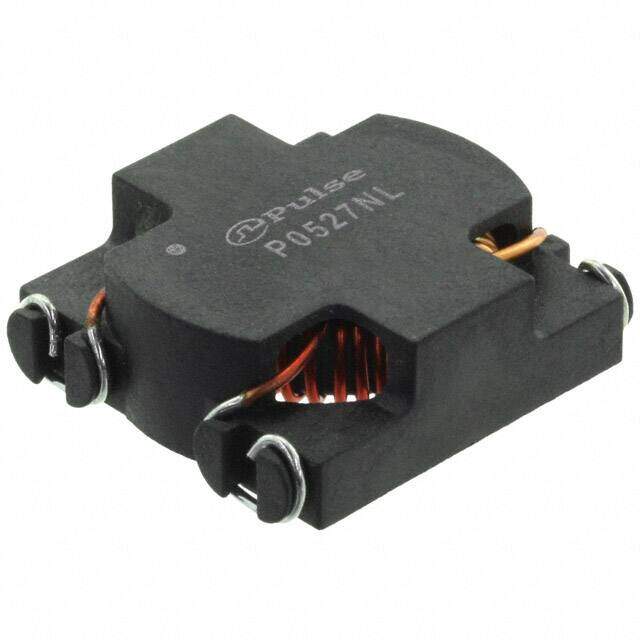

P0527NLT image
Favorite
P0527NLT image
Favorite
RoHS
RoHS RoHS compliant
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description Common Mode Chokes Dual 530uH 7.2A 15mOhm DCR SMD T/R
PDF
/
Buying Options
Total Price: USD $4.06
Unit Price: USD $4.0568
≥1 USD $4.0568
≥10 USD $3.39152
≥100 USD $3.096544
≥500 USD $2.65408
Inventory: 1019
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height 10.03mm

Technical

DC Resistance (DCR) (Max) 15mOhm
Number of Lines 2
DC Current 7.2A
Filter Type Power Line
Max DC Current 7.2A
Current 7.2A
Inductance 530 μH
Military Standard Not
Depth 25.4mm
Number of Functions 2
Shielding Unshielded
Packing Method TR
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance 35%
Size / Dimension 1.110Lx1.000W 28.19mmx25.40mm
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~120°C

Physical

Number of Pins 68
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
