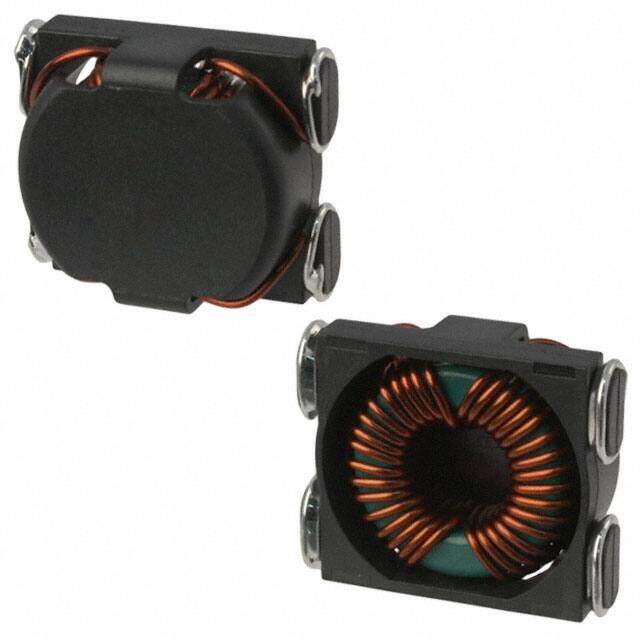

P0429
RoHS
/
Package Horizontal, 4 PC Pad
Category Filters / Common Mode Chokes
Description
Common Mode Filters / Chokes CMI SMT
PDF
/
Inventory: 5218
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Length 30.99mm
Height 12.7mm
Technical
DC Resistance (DCR) (Max) 14mOhm
Number of Lines 2
DC Current 9.7A
Filter Type Power Line
Max DC Current 9.7A
Current 9.7A
Inductance 810 μH
Military Standard Not
Depth 25.4mm
Number of Functions 2
Shielding Unshielded
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance 35%
Size / Dimension 1.220Lx1.000W 30.99mmx25.40mm
Published 2007
Packaging Tube
Operating Temperature -40°C~120°C
Physical
Package / Case Horizontal, 4 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
