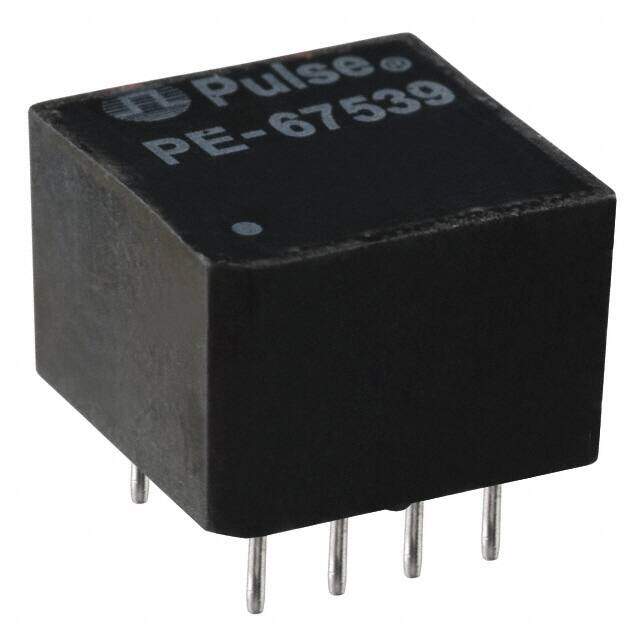

PE-67539
RoHS
/
Package Vertical, 8 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 4LN TH
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6093
≥1 USD $1.6093
≥10 USD $1.3205
≥100 USD $1.27965
≥500 USD $1.23785
≥1000 USD $1.197
Inventory: 1177
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 8 PC Pin
Technical
Packaging Bulk
Published 2009
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Packing Method TUBE
Shielding Unshielded
Number of Functions 4
Depth 12.7mm
Reach Compliance Code unknown
Physical Dimension L12.7XB12.7XH9.53 (mm)/L0.5XB0.5XH0.375 (inch)
Inductance 140 μH
Test Frequency 100MHz
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 600mOhm
Self Resonant Frequency 100kHz
Dimensions
Height 9.525mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
