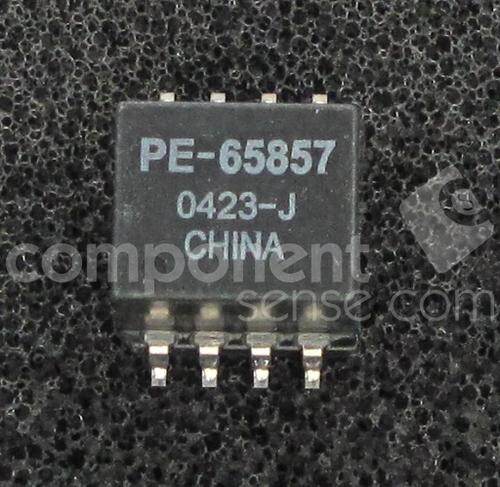

PE-65857
RoHS
/
Package Vertical, 8 Gull Wing
Category Filters / Common Mode Chokes
Description
Common Mode Chokes Quad 22.5uH 34dB 220mOhm DCR SMD Tube
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.65965
≥1 USD $1.65965
≥10 USD $1.36135
≥100 USD $1.31955
≥500 USD $1.2768
≥1000 USD $1.23405
Inventory: 5008
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Vertical, 8 Gull Wing
Weight 829.988989mg
Technical
Packaging Tube
Published 2009
Size / Dimension 0.475Lx0.475W 12.06mmx12.06mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Shielding Unshielded
Depth 15.3mm
Test Frequency 100MHz
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 220mOhm
Dimensions
Height 8.64mm
Length 12.06mm
Width 12.06mm
Height (Max) 0.390 9.91mm
Compliance
RoHS Status Non-RoHS Compliant
